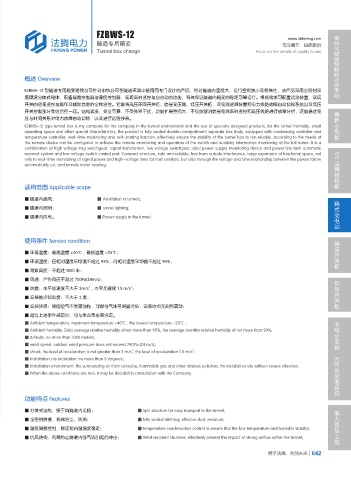

FZBWS-12 模块化智能预制舱式变电站
www.shfateng.com
隧道专用箱变 专注细节 品质取胜
Tunnel box change Focus on the details of quality to win

概述 Overview

FZBWS-12 型隧道专用箱变是我公司针对中铁公司在隧道环境中使用而专门设计的产品，针对隧道内湿度大，运行空间狭小等特殊性，该产品采用全密封双
层隔温分体式箱体，配备凝露控制器与温度控制器，实现实时监控与自启动的功能，有效保证隧道内箱变的稳定可靠运行。根据需求可配置远动装置，实现
开关的远程监控与操作及辅助信息的全称监控。它是将高压环网开关柜、信号变压器、低压开关柜、双电源监测装置和电力线路故障自动切除系统以及低压
开关控制部分等组合在一起。结构紧凑，安全可靠，不受外界干扰，功能扩展空间大，不仅能够对信号电源实时监控和高压线路进行故障分析，还能通过电 最新小型柜
压与时间关系对电力故障自动切除，以及进行远程抄表。
FZBWS-12 type tunnel box is my company for the company in the tunnel environment and the use of specially designed products, for the tunnel humidity, small
operating space and other special characteristics, the product is fully sealed double-compartment separate box Body, equipped with condensing controller and
temperature controller, real-time monitoring and self-starting function, effectively ensure the stability of the tunnel box to run reliably. According to the needs of
the remote device can be configured to achieve the remote monitoring and operation of the switch and auxiliary information monitoring of the full name. It is a
combination of high voltage ring switchgear, signal transformer, low voltage switchgear, dual power supply monitoring device and power line fault automatic
removal system and low voltage switch control part. Compact structure, safe and reliable, free from outside interference, large expansion of functional space, not GE
only to real-time monitoring of signal power and high-voltage lines for fault analysis, but also through the voltage and time relationship between the power failure 品牌授权柜
automatically cut, and remote meter reading.

适用范围 Applicable scope
■ 隧道内通风； ■ Ventilation in tunnels; 箱式变电站
■ 隧道内照明； ■ tunnel lighting;
■ 隧道内供电。 ■ Power supply in the tunnel.

使用条件 Service condition 高压开关柜

■ 环境温度：最高温度 +40℃，最低温度 -25℃；
■ 环境湿度：日相对湿度平均值不超过 95%，月相对湿度平均值不超过 90%；
■ 海拔高度：不超过 1000 米；
■ 风速：户外风压不超过 700Pa(34m/s)； 低压开关柜
2
2
■ 防震：水平加速度不大于 3m/s ，水平加速度 1.5 m/s ；
■ 安装地点倾斜度：不大于 3 度；
■ 安装环境：周围空气不受腐蚀性，可燃性气体等明显污染，安装地点无剧烈震动；
■ 超过上述条件规定时，可与本公司协商决定。
电缆分支箱、元件及配电系统
■ Ambient temperature: maximum temperature +40℃ , the lowest temperature -25℃ ;
■ Ambient humidity: Daily average relative humidity of not more than 95%, the average monthly relative humidity of not more than 90%;
■ Altitude: no more than 1000 meters;
■ wind speed: outdoor wind pressure does not exceed 700Pa (34 m/s);
2
2
■ shock: the level of acceleration is not greater than 3 m/s , the level of acceleration 1.5 m/s ;
■ Installation site inclination: no more than 3 degrees;
■ installation environment: the surrounding air from corrosive, flammable gas and other obvious pollution, the installation site without severe vibration;
■ When the above conditions are met, it may be decided in consultation with the Company.

功能特点 Features

■ 分体式结构，便于向隧道内运输； ■ Split structure for easy transport to the tunnel; 电力总包工程
■ 全密封拼接，有效防尘、防潮； ■ fully sealed stitching, effective dust, moisture;
■ 温度凝露控制，保证箱内温湿度稳定； ■ temperature condensation control to ensure that the box temperature and humidity stability;
■ 抗风结构，有效防止隧道内强气流引起的冲击； ■ Wind resistant structure, effectively prevent the impact of strong airflow within the tunnel;
