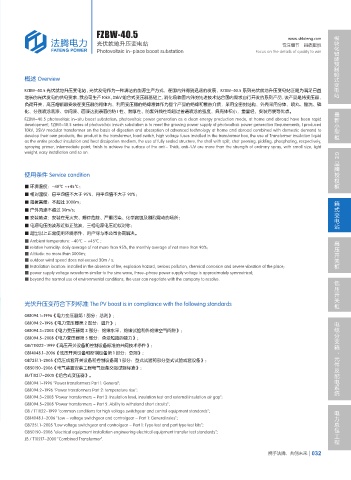

FZBW-40.5 模块化智能预制舱式变电站
www.shfateng.com
光伏就地升压变电站 专注细节 品质取胜
Photovoltaic in-place boost substation Focus on the details of quality to win

概述 Overview

FZBW-40.5 光伏就地升压变电站 , 光伏发电作为一种清洁的能源生产方式，在国内外得到迅速的发展，FZBW-40.5 系列光伏就地升压变电站正是为满足日益
增长的光伏发电的供电要求，我公司生产10kV、35kV组合式变压器基础上，消化吸收国内外的先进技术结合国内需求自行开发的系列产品，该产品是将变压器，
负荷开关，高压熔断器安装在变压器的箱体内，利用变压器的绝缘液体作为整个产品的绝缘和散热介质，采用全密封结构，外壳采用分体，喷丸、酸洗、磷
化、分别喷涂底漆、中间漆、面漆达到表面的防 I 性、耐厚性、防紫外线性均超过普通喷涂的强度，具有体积小，重量轻、安装方便等优点。 最新小型柜
FZBW-40.5 photovoltaic in-situ boost substation, photovoltaic power generation as a clean energy production mode, at home and abroad have been rapid
development, FZBW-40.5 series of photovoltaic inrush substation is to meet the growing power supply of photovoltaic power generation Requirements, I produced
10kV, 35kV modular transformer on the basis of digestion and absorption of advanced technology at home and abroad combined with domestic demand to
develop their own products, the product is the transformer, load switch, high voltage fuses installed in the transformer box, the use of Transformer insulation liquid
as the entire product insulation and heat dissipation medium, the use of fully sealed structure, the shell with split, shot peening, pickling, phosphating, respectively,
spraying primer, intermediate paint, finish to achieve the surface of the anti- Thick, anti-UV are more than the strength of ordinary spray, with small size, light
weight, easy installation and so on.
品牌授权柜 GE

使用条件 Service condition

■ 环境温度：-40℃ ~+45℃；
■ 相对湿度：日平均值不大于 95%，月平均值不大于 90%；
箱式变电站
■ 海拔高度：不超过 3000m；
■ 户外风速不超过 30m/s；
■ 安装地点：安装在无火灾、爆炸危险、严重污染、化学腐蚀及剧烈震动的场所；
■ 电源电压的波形近似正弦波，三相电源电压近似对称；
■ 超出以上正常使用环境条件，用户可与本公司协商解决。
高压开关柜
■ Ambient temperature: -40℃ ~ +45℃ ;
■ relative humidity: daily average of not more than 95%, the monthly average of not more than 90%;
■ Altitude: no more than 3000m;
■ outdoor wind speed does not exceed 30m / s;
■ Installation location: installed in the absence of fire, explosion hazard, serious pollution, chemical corrosion and severe vibration of the place;
■ power supply voltage waveform similar to the sine wave, three-phase power supply voltage is approximately symmetrical;
■ beyond the normal use of environmental conditions, the user can negotiate with the company to resolve. 低压开关柜

光伏升压变符合下列标准 The PV boost is in compliance with the following standards
GB1094.1-1996《电力变压器第 1 部分：总则》；
电缆分支箱、元件及配电系统
GB1094.2-1996《电力变压器第 2 部分：温升》；
GB1094.3-2003《电力变压器第 3 部分：绝缘水平、绝缘试验和外绝缘空气间隙》；
GB1094.5-2008《电力变压器第 5 部分：承受短路的能力》；
GB/T11022-1999《高压开关设备和控制设备标准的共同技术条件》；
GB14048.1-2006《低压开关设备和控制设备第 1 部分：总则》；
GB7251.1-2005《低压成套开关设备和控制设备第 1 部分：型式试验和部分型式试验成套设备》；
GB50150-2006《电气装置安装工程电气设备交接试验标准》；
JB/T10217-2000《组合式变压器》。
GB1094.1-1996 "Power transformers Part 1: General";
GB1094.2-1996 "Power transformers Part 2: temperature rise";
GB1094.3-2003 "Power transformers - Part 3: Insulation level, insulation test and external insulation air gap";
GB1094.5-2008 "Power transformers - Part 5: Ability to withstand short circuits";
GB / T11022-1999 "common conditions for high voltage switchgear and control equipment standards"; 电力总包工程
GB14048.1-2006 "Low - voltage switchgear and controlgear - Part 1: General rules";
GB7251.1-2005 "Low voltage switchgear and controlgear - Part 1: Type test and part type test kits";
GB50150-2006 "electrical equipment installation engineering electrical equipment transfer test standards";
JB / T10217-2000 "Combined Transformer".

携手法腾、共创未来 032
