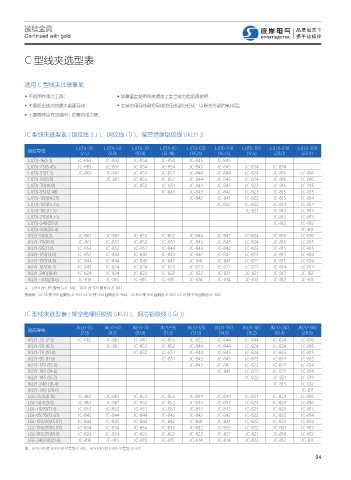

Page 13 - 浙江彼岸电气有限公司(样本)
P. 13
接续金具
Continued with gold
C 型线夹选型表
选用 C 型线夹注意事项
◆ 不能用作承力工具； ◆ 如需重复使用线夹请涂上复合电力脂后再使用；
◆ 不要超出线沟的最大截面导线； ◆ 安装前用导线刷把导线的压接部分轻拭，以除去外部的氧化层。
◆ 不要擦掉涂在压接面上的复合电力脂；
JC 型线夹选型表 ( 铝绞线 (LJ )、铜绞线 (TJ )、架空绝缘铝绞线 (JKLYJ ))
LJ(TJ)-35 LJ(TJ)-50 LJ(TJ)-70 LJ(TJ)-95 LJ(TJ)-120 LJ(TJ)-150 LJ(TJ)-185 LJ(TJ)-240 LJ(TJ)-300
适应导线
(7.5) (9.0) (10.8) (12.48) (14.25) (15.75) (17.5) (20.0) (22.4)
LJ(TJ)-16(5.1) JC-863 JC-862 JC-854 JC-854 JC-845 JC-845
LJ(TJ)-25(6.45) JC-863 JC-862 JC-854 JC-854 JC-845 JC-845 JC-834 JC-824
LJ(TJ)-35(7.5) JC-861 JC-861 JC-853 JC-852 JC-844 JC-844 JC-824 JC-816 JC-816
LJ(TJ)-50(9.0) JC-861 JC-853 JC-852 JC-844 JC-843 JC-824 JC-816 JC-816
LJ(TJ)-70(10.8) JC-852 JC-851 JC-843 JC-843 JC-823 JC-816 JC-815
LJ(TJ)-95(12.48) JC-843 JC-843 JC-842 JC-823 JC-815 JC-815
LJ(TJ)-120(14.25) JC-842 JC-841 JC-822 JC-815 JC-814
LJ(TJ)-150(15.75) JC-832 JC-822 JC-814 JC-814
LJ(TJ)-185(17.5) JC-821 JC-813 JC-813
LJ(TJ)-210(18.75) JC-813 JC-813
LJ(TJ)-240(20.0) JC-812 JC-812
LJ(TJ)-300(22.4) JC-811
JKLYJ-50(8.3) JC-861 JC-861 JC-853 JC-852 JC-844 JC-843 JC-824 JC-816 JC-816
JKLYJ-70(10.0) JC-861 JC-853 JC-852 JC-851 JC-843 JC-843 JC-824 JC-816 JC-815
JKLYJ-95(11.6) JC-853 JC-852 JC-851 JC-844 JC-843 JC-842 JC-823 JC-815 JC-815
JKLYJ-120(13.0) JC-852 JC-844 JC-843 JC-843 JC-842 JC-842 JC-823 JC-815 JC-814
JKLYJ-150(14.6) JC-844 JC-844 JC-843 JC-842 JC-841 JC-841 JC-822 JC-815 JC-814
JKLYJ-185(16.2) JC-843 JC-824 JC-824 JC-823 JC-823 JC-822 JC-822 JC-814 JC-813
JKLYJ-240(18.4) JC-824 JC-824 JC-823 JC-822 JC-822 JC-821 JC-821 JC-813 JC-8I2
JKLYJ -300(20.6) JC-816 JC-816 JC-815 JC-815 JC-814 JC-814 JC-813 JC-812 JC-811
注：LJ150 对 LJ95 型号为 JC-842，TJ120 对 TJ70 型号为 JC-843
接地线：GJ-50 接 Φ10 圆钢为 JC-853 GJ-50 接 Φ14 圆钢为 JC-844，GJ-850 接 Φ12 圆钢为 JC-852 GJ-50 接 Φ16 圆钢为 JC-843
JC 型线夹选型表 ( 架空绝缘铝绞线 (JKLYJ )、钢芯铝绞线 (LGJ ))
JKLYJ-35 JKLYJ-50 JKLYJ-70 JKLYJ-95 JKLYJ-120 JKLYJ-150 JKLYJ-185 JKLYJ-240 JKLYJ-300
适应导线
(7.0) (8.3) (10.0) (11.6) (13.0) (14.6) (16.2) (18.4) (20.6)
JKLYJ-35 (7.0) JC-862 JC-861 JC-861 JC-853 JC-852 JC-844 JC-844 JC-824 JC-816
JKLYJ-50 (8.3) JC-861 JC-853 JC-852 JC-844 JC-844 JC-824 JC-824 JC-816
JKLYJ-70 (10.0) JC-852 JC-851 JC-844 JC-843 JC-824 JC-823 JC-815
JKLYJ-95 (11.6) JC-851 JC-843 JC-843 JC-823 JC-822 JC-815
JKLYJ-120 (13.0) JC-843 JC-842 JC-823 JC-822 JC-814
JKLYJ-150 (14.6) JC-841 JC-822 JC-822 JC-814
JKLYJ-185 (16.2) JC-822 JC-821 JC-813
JKLYJ-240 (18.4) JC-813 JC-812
JKLYJ-300 (20.6) JC-811
LGJ-35/6(8.16) JC-861 JC-861 JC-853 JC-853 JC-844 JC-844 JC-834 JC-824 JC-816
LGJ-50/8(9.6) JC-861 JC-861 JC-852 JC-852 JC-844 JC-843 JC-824 JC-824 JC-816
LGJ-70/10(11.4) JC-853 JC-852 JC-851 JC-851 JC-843 JC-843 JC-824 JC-823 JC-815
LGJ-95/15(13.61) JC-845 JC-844 JC-844 JC-843 JC-842 JC-842 JC-823 JC-822 JC-814
LGJ-120/20(15.07) JC-844 JC-843 JC-843 JC-842 JC-841 JC-841 JC-822 JC-822 JC-814
LGJ-150/20(16.67) JC-834 JC-834 JC-834 JC-833 JC-832 JC-832 JC-822 JC-821 JC-813
LGJ-185/25(18.9) JC-824 JC-824 JC-823 JC-822 JC-822 JC-821 JC-821 JC-814 JC-812
LGJ-240/30(21.6) JC-816 JC-816 JC-815 JC-815 JC-814 JC-814 JC-813 JC-812 JC-811
注：JKLYJ240 对 JKLYJ240 型号为 JC-813，JKLYJ240 对 LGJ95 型号为 JC-822
