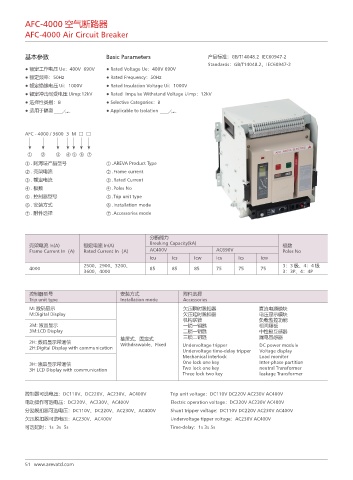

P. 60
AFC-4000 空气断路器
AFC-4000 Air Circuit Breaker
基本参数 Basic Parameters 产品标准:GB/T14048.2 IEC60947-2
Standards:GB/T14048.2、IEC60947-2
● 额定工作电压 Ue:400V 690V ● Rated Voltage Ue:400V 690V
● 额定频率:50Hz ● Rated Frequency:50Hz
● 额定绝缘电压 Ui:1000V ● Rated Insulation Voltage Ui:1000V
● 额定冲击耐受电压 Uimp:12kV ● Rated Impulse Withstand Voltage Uimp:12kV
● 选择性类别:B ● Selective Categories:B
● 适用于隔离 ● Applicable to Isolation
AFC - 4000 / 3600 3 M □ □
① ② ③ ④ ⑤ ⑥ ⑦
① . 阿海珐产品型号 ① .AREVA Product Type
② . 壳架电流 ② .Frame current
③ . 额定电流 ③ .Rated Current
④ . 极数 ④ .Poles No
⑤ . 控制器型号 ⑤ .Trip unit type
⑥ . 安装方式 ⑥ .Installation mode
⑦ . 附件选择 ⑦ .Accessories mode
分断能力
壳架电流 In(A) 额定电流 In(A) Breaking Capacity(kA) 极数
Frame Current In(A) Rated Current In(A) AC400V AC690V Poles No
Icu Ics Icw Icu Ics Icw
2500、2900、3200、 3:3 极、4:4 极
4000 85 85 85 75 75 75
3600、4000 3:3P、4:4P
控制器型号 安装方式 附件选择
Trip unit type Installation mode Accessories
M: 数码显示 欠压瞬时脱扣器 直流电源模块
M:Digital Display 欠压延时脱扣器 电压显示模块
机构联锁 负载监控功能
3M: 液晶显示 一锁一钥匙 相间隔板
3M:LCD Display 二锁一钥匙 中性极互感器
抽屉式、固定式 三锁二钥匙 漏电互感器
2H: 数码显示带通信 Withdrawable、Fixed
2H:Digital Display with communication Undervoltage tripper DC power module
Undervoltage time-delay tripper Voltage display
Mechanical interlock Load monitor
3H: 液晶显示带通信 One lock one key Inter-phase partition
3H LCD Display with communication Two lock one key neutral Transformer
Three lock two key leakage Transformer
控制器可选电压:DC110V、DC220V、AC230V、AC400V Trip unit voltage:DC110V DC220V AC230V AC400V
电动操作可选电压:DC220V、AC230V、AC400V Electric operation voltage:DC220V AC230V AC400V
分励脱扣器可选电压:DC110V、DC220V、AC230V、AC400V Shunt tripper voltage:DC110V DC220V AC230V AC400V
欠压脱扣器可选电压:AC230V、AC400V Undervoltage tipper voltage:AC230V AC400V
可选延时:1s 3s 5s Time-delay:1s 3s 5s
