HVS 12kV\24kV 户内高压真空断路器 ୚ࡢ䚕ࣔࠩ
HVS 12kV\24kV Indoor HV Vacuum Circuit Breaker AREVA ELECTRIC

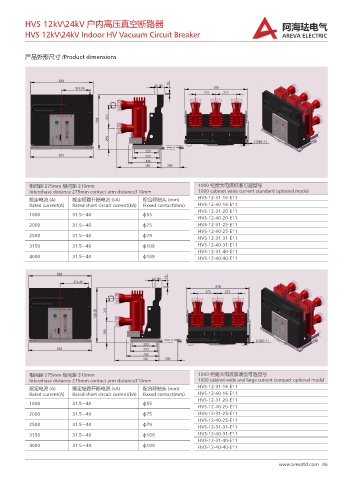

产品外形尺寸 /Product dimensions

相间距 275mm 极间距 310mm 1000 柜宽大电流标准可选型号
Interphase distance 275mm contact arm distance310mm 1000 cabinet wide current standard optional model
额定电流 (A) 额定短路开断电流 (kA) 配合静触头 (mm) HVS-12-31-16-E11
Rated current(A) Rated short circuit current(kA) Fixxed contact(mm) HVS-12-40-16-E11
HVS-12-31-20-E11
1600 31.5~40 ф55
HVS-12-40-20-E11
2000 31.5~40 ф75 HVS-12-31-25-E11
HVS-12-40-25-E11
2500 31.5~40 ф79
HVS-12-31-31-E11
3150 31.5~40 ф109 HVS-12-40-31-E11
HVS-12-31-40-E11
4000 31.5~40 ф109 HVS-12-40-40-E11

相间距 275mm 极间距 310mm 1000 柜宽大电流紧凑型可选型号
Interphase distance 275mm contact arm distance310mm 1000 cabinet wide and large current compact optional model
额定电流 (A) 额定短路开断电流 (kA) 配合静触头 (mm) HVS-12-31-16-E11
Rated current(A) Rated short circuit current(kA) Fixxed contact(mm) HVS-12-40-16-E11
HVS-12-31-20-E11
1600 31.5~40 ф55
HVS-12-40-20-E11
2000 31.5~40 ф75 HVS-12-31-25-E11
HVS-12-40-25-E11
2500 31.5~40 ф79
HVS-12-31-31-E11
3150 31.5~40 ф109 HVS-12-40-31-E11
HVS-12-31-40-E11
4000 31.5~40 ф109 HVS-12-40-40-E11

www.arevatd.com 06
