HVS 12kV\24kV 户内高压真空断路器 ୚ࡢ䚕ࣔࠩ
HVS 12kV\24kV Indoor HV Vacuum Circuit Breaker AREVA ELECTRIC

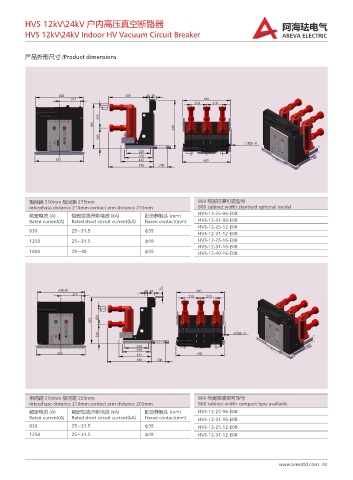

产品外形尺寸 /Product dimensions

相间距 210mm 极间距 275mm 800 柜宽标准可选型号
Interphase distance 210mm contact arm distance 275mm 800 cabinet width standard optional model
额定电流 (A) 额定短路开断电流 (kA) 配合静触头 (mm) HVS-12-25-06-E08
Rated current(A) Rated short circuit current(kA) Fixxed contact(mm) HVS-12-31-06-E08
HVS-12-25-12-E08
630 25~31.5 ф35
HVS-12-31-12-E08
1250 25~31.5 ф49 HVS-12-25-16-E08
HVS-12-31-16-E08
1600 25~40 ф55 HVS-12-40-16-E08

相间距 210mm 极间距 205mm 800 柜宽紧凑型可型号
Interphase distance 210mm contact arm distance 205mm 800 cabinet width compact type available
额定电流 (A) 额定短路开断电流 (kA) 配合静触头 (mm) HVS-12-25-06-E08
Rated current(A) Rated short circuit current(kA) Fixxed contact(mm) HVS-12-31-06-E08
630 25~31.5 ф35 HVS-12-25-12-E08
1250 25~31.5 ф49 HVS-12-31-12-E08
