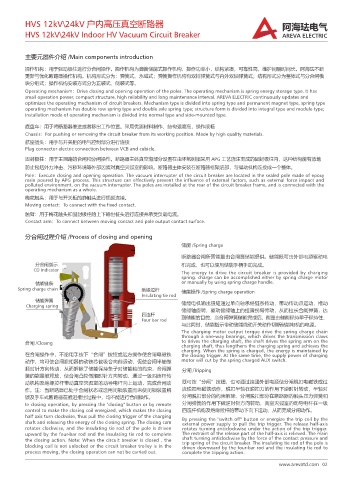

HVS 12kV\24kV 户内高压真空断路器 ୚ࡢ䚕ࣔࠩ
HVS 12kV\24kV Indoor HV Vacuum Circuit Breaker AREVA ELECTRIC

主要元器件介绍 /Main components introduction

操作机构：用于驱动极柱进行分合闸操作。操作机构为弹簧储能式操作机构，操作功率小，结构紧凑，可靠性高，维护间隔时间长。阿海珐不断
更新与优化断路器操作机构。机构形式分为：弹簧式、永磁式；弹簧操作机构有双排弹簧式与内外双轴弹簧式；结构形式分为整体式与分合闸模
块分组式；操作机构安装方式分为正装式、侧装式等。
Operating mechanism：Drive closing and opening operation of the poles. The operating mechanism is spring energy storage type. It has
small operation power, compact structure, high reliability and long maintenance interval. AREVA ELECTRIC continuously updates and
optimizes the operating mechanism of circuit breakers. Mechanism type is divided into spring type and permanent magnet type, spring type
operating mechanism has double row spring type and double axle spring type; structure form is divided into integral type and module type;
installation mode of operating mechanism is divided into normal type and side-mounted type.
底盘车：用于将断路器推进或者移出工作位置。采用优质材料制作，结构强度高，操作顺畅
Chassis：For pushing or removing the circuit breaker from its working position. Made by high quality materials.
航空插头：用于与开关柜的电气控制部分进行连接
Plug connector electric connection between VCB and cubicle.
固封极柱：用于主回路的合闸和分闸操作。断路器主体真空泡部分设置在由环氧树脂采用 APG 工艺浇注而成的固封极柱内，这种结构能有效地
防止包括外力冲击、污秽环境等外部因素对真空灭弧室的影响。断路器主体安装在断路器框架后部，与操动机构连接成一个整体。
Pole：Execute closing and opening operation. The vacuum interrupter of the circuit breaker are located in the sealed pole made of epoxy
resin poured by APG process. This structure can effectively prevent the influence of external factors, such as external force impact and
polluted environment, on the vacuum interrupter. The poles are installed at the rear of the circuit breaker frame, and is connected with the
operating mechanism as a whole.
梅花触头：用于与开关柜的静触头进行插拔连接。
Moving contact：To connect with the fixed contact.
触臂：用于梅花触头和固封极柱的上下输出桩头进行连接并承受负载电流。
Contact arm：To connect between moving contact and pole output contact surface.

分合闸过程介绍 /Process of closing and opening
储能 /Spring charge
断路器合闸所需能量由合闸簧储能提供。储能既可由外部电源驱动电
分合闸指示 机完成，也可以使用储能手柄手动完成。
CO indicator
The energy to drive the circuit breaker is provided by charging
spring. charge can be accomplished either by spring charge motor
储能链条 or manually by using spring charge handle.
Spring charge chain 绝缘拉杆 储能操作 /Spring charge operation
Insulating tie rod
储能弹簧 储能电机输出扭矩通过单向轴承经链条传动，带动传动爪运动，推动
Charging spring
储能轴旋转，驱动储能轴上的挂簧拐臂传动，从而拉长合闸弹簧，达
四连杆 到储能的目的，当合闸弹簧储能完成后，能量由储能保持挚子保持住，
Four bar rod
与此同时，储能指示带动储能微动开关动作切断储能电机的电源。
The charging motor output torque drive the spring charge chain
through a one-way bearings, which drives the transmission claws
合闸 /Closing to drives the charging shaft, the shaft drives the spring arm on the
charging shaft, thus lengthens the charging spring and achieves the
charging. When the spring is charged, the energy is maintained by
在合闸操作中，不论用手按下“合闸”按钮或远方操作使合闸电磁铁 the closing trigger. At the same time, the supply power of charging
动作，均可使合闸脱扣器的动铁芯被吸合向前运动，促使合闸半轴做 motor will cut by the spring charged AUX switch.
顺时针方向转动，从而解除了储能保持挚子对储能轴的约束，合闸弹 分闸 /Tripping
簧的能量被释放，使合闸凸轮做顺时针方向转动，通过一级四连杆传
动机构及绝缘拉杆带动真空灭弧室的动导电杆向上运动，完成合闸动 既可按“分闸”按钮，也可通过接通外部电源使分闸脱扣电磁铁或过
作。注：当断路器已处于合闸状态或选用闭锁装置而未使闭锁装置解 流脱扣电磁铁动作，脱扣半轴在脱扣力的作用下逆时针转动，半轴对
锁及手车式断路器在推进推出过程中，均不能进行合闸操作。 分闸脱扣部分的约束解除，分闸脱扣部分在断路器的触头压力弹簧和
In closing operation, by pressing the "closing" button or by remote 分闸弹簧的作用下做逆时针方向转动，真空灭弧室的动导电杆在一级
control to make the closing coil energized, which makes the closing 四连杆机构及绝缘拉杆的带动下向下运动，从而完成分闸动作。
half axis turn clockwise, thus pull the closing trigger of the charging By pressing the "switch off" button or energize the trip coil by the
shaft and releasing the energy of the closing spring. The closing cam external power supply to pull the trip trigger. The release half-axis
rotates clockwise, and the insulating tie rod of the pole is driven rotates turning anticlockwise under the action of the trip trigger.
upward by the four-bar rod and the insulating tie rod to complete The restraint of the release part of the half-axis is relieved. The main
the closing action. Note: When the circuit breaker is closed , the shaft turning anticlockwise by the force of the contact pressure and
trip spring of the circuit breaker. The insulating tie rod of the pole is
blocking coil is not unlocked or the circuit breaker trolley is in the driven downward by the four-bar rod and the insulating tie rod to
process moving, the closing operation can not be carried out. complete the tripping action.
