P. 12

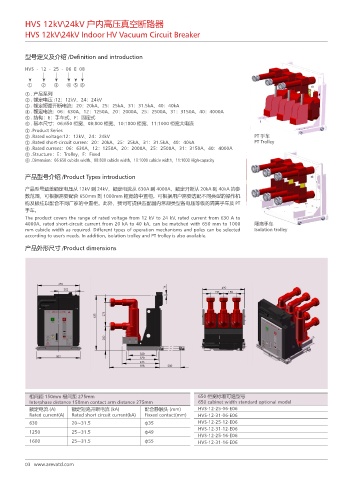

HVS 12kV\24kV 户内高压真空断路器
          HVS 12kV\24kV Indoor HV Vacuum Circuit Breaker



          型号定义及介绍 /Definition and introduction

          HVS  -  12  -  25  -  06  E  08

          ①     ②      ③     ④  ⑤ ⑥
          ① . 产品系列
          ② . 额定电压 :12:12kV、24:24kV
          ③ . 额定短路开断电流:20:20kA、25:25kA、31:31.5kA、40:40kA
          ④ . 额定电流:06:630A、12:1250A、20:2000A、25:2500A、31:3150A、40:4000A
          ⑤ . 结构:E:手车式、F:固定式
          ⑥ . 基本尺寸:06:650 柜宽、08:800 柜宽、10:1000 柜宽、11:1000 柜宽大电流
          ① .Product Series
          ② .Rated voltage:12:12kV、24:24kV                                             PT 手车
          ③ .Rated short-circuit curren:20:20kA、25:25kA、31:31.5kA、40:40kA              PT Trolley
          ④ .Rated current:06:630A、12:1250A、20:2000A、25:2500A、31:3150A、40:4000A
          ⑤ .Structure:E:Trolley、F:Fixed
          ⑥ .Dimension:06:650 cubicle width、08:800 cubicle width、10:1000 cubicle width、11:1000 High-capacity

          产品型号介绍 /Product Types introduction

          产品型号涵盖额定电压从 12kV 到 24kV,额定电流从 630A 到 4000A,额定开断从 20kA 到 40kA 的参
          数范围,可根据需要配合 650mm 到 1000mm 柜宽的中置柜。可根据用户需要选配不同类型的操作机
          构及极柱以配合不同厂家的中置柜。此外,我司可提供匹配国内常规类型各电压等级的隔离手车及 PT
          手车。
          The product covers the range of rated voltage from 12 kV to 24 kV, rated current from 630 A to
          4000A, rated short-circuit current from 20 kA to 40 kA, can be matched with 650 mm to 1000   隔离手车
          mm cubicle width as required. Different types of operation mechanisms and poles can be selected   Isolation trolley
          according to user's needs. In addition, isolation trolley and PT trolley is also available.
          产品外形尺寸 /Product dimensions






























           相间距 150mm 极间距 275mm                                      650 柜宽标准可选型号
           Interphase distance 150mm contact arm distance 275mm     650 cabinet width standard optional model
           额定电流 (A)      额定短路开断电流 (kA)            配合静触头 (mm)        HVS-12-25-06-E06
           Rated current(A)  Rated short circuit current(kA)  Fixxed contact(mm)  HVS-12-31-06-E06
           630           20~31.5                  ф35               HVS-12-25-12-E06
                                                                    HVS-12-31-12-E06
           1250          25~31.5                  ф49
                                                                    HVS-12-25-16-E06
           1600          25~31.5                  ф55               HVS-12-31-16-E06


          03 www.arevatd.com
