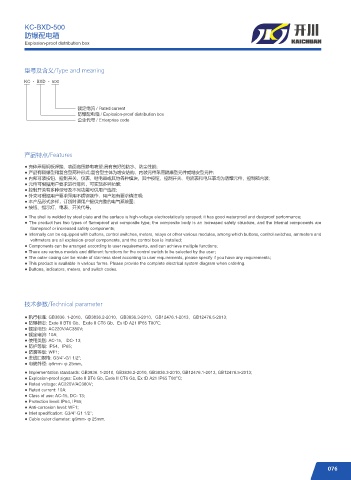

KC-BXD-500
防爆配电箱
Explosion-proof distribution box

型号及含义/Type and meaning

KC - BXD - 500

额定电流 / Rated current
防爆配电箱 / Explosion-proof distribution box
企业代号 / Enterprise code

产品特点/Features

● 壳体采用钢板焊接，表面高压静电喷塑;具有良好的防水、防尘性能;
● 产品有隔爆型和复合型两种形式;复合型主体为增安结构，内装元件采用隔爆型元件或增安型元件;
● 内部可装按钮、控制开关、仪表、继电器或其他各种模块，其中按钮、控制开关、电流表和电压表均为防爆元件，控制箱内装;
● 元件可根据用户要求进行排列，可实现多种功能;
● 控制开关有多种型号及不同功能可供用户选择;
● 外壳可根据用户要求采用不锈钢制作，用户如有要求请注明;
● 本产品形式多样，订货时请用户提供完整的电气系统图;
● 按钮、指示灯、电表、开关代号。
● The shell is welded by steel plate and the surface is high-voltage electrostatically sprayed; it has good waterproof and dustproof performance;
● The product has two types of flameproof and composite type; the composite body is an increased safety structure, and the internal components are
flameproof or increased safety components;
● Internally can be equipped with buttons, control switches, meters, relays or other various modules, among which buttons, control switches, ammeters and
voltmeters are all explosion-proof components, and the control box is installed;
● Components can be arranged according to user requirements, and can achieve multiple functions;
● There are various models and different functions for the control switch to be selected by the user;
● The outer casing can be made of stainless steel according to user requirements, please specify if you have any requirements;
● This product is available in various forms. Please provide the complete electrical system diagram when ordering.
● Buttons, indicators, meters, and switch codes.

技术参数/Technical parameter

● 执行标准: GB3836. 1-2010、GB3836.2-2010、GB3836.3-2010、GB12476.1-2013、GB12476.5-2013;
● 防爆标志: Exde II BT6 Gb、Exde II CT6 Gb、Ex tD A21 IP65 T80℃;
● 额定电压: AC220V/AC380V;
● 额定电流: 10A;
● 使用类别: AC-15、 DC- 13;
● 防护等级: IP54、IP65;
● 防腐等级: WF1;
● 进线口规格: G3/4"-G1 1/2";
● 电缆外径: φ9mm- φ 25mm。
● Implementation standards: GB3836. 1-2010, GB3836.2-2010, GB3836.3-2010, GB12476.1-2013, GB12476.5-2013;
● Explosion-proof signs: Exde II BT6 Gb, Exde II CT6 Gb, Ex tD A21 IP65 T80°C;
● Rated voltage: AC220V/AC380V;
● Rated current: 10A;
● Class of use: AC-15, DC- 13;
● Protection level: IP54, IP65;
● Anti-corrosion level: WF1;
● Inlet specification: G3/4"-G1 1/2";
● Cable outer diameter: φ9mm- φ 25mm.
