PZ30-A终端组合配电箱系列主要结构部件有透明罩、上盖、箱体、安装轨、轨道高低调节螺杆、导电排、护线罩和电器开关元
件等。内装电器开关元件全部采用宽度9MM模数的电器，安装于顶帽形轨道上，可根据需要任意组合，安装轨道高低可调节，
特别对暗装式更为方便。拆装迅速方便、开关元件手柄外露，带电及其它部分遮盖于上盖内部，打开门可方便地操作，使用安
全可靠，箱体上下、左右及背后均设置进出线孔，便于接线。
PZ30-B(原型号PZ30X)模数化终端组合配电箱系列是一种安装模数为9mm终端电器的装置，它适用于交流50Hz，额定电压
220V与380V的住宅、车站、商业网和工矿企业的配电中作为对用电设备进行控制，对过载、短路、过电压和漏电起保护作用的
一种成套装置。
PZ30-B模数化终端组合配电箱系列分明装/暗装两种类型。
The main structural components of the PZ30-A terminal combination distribution box series include transparent cover, upper
cover, box body, mounting rail, track height adjusting screw, conductive row, wire shield and electrical switch components. The
built-in electrical switch components are all equipped with electric appliances with a width of 9MM and are mounted on the top
hat-shaped track. They can be combined according to the needs. The height of the installation rail can be adjusted, especially
for the concealed type. The disassembly and assembly is quick and convenient, the handle of the switch component is exposed,
and the electrified and other parts are covered inside the upper cover. The door can be easily operated, and the use is safe
and reliable. The inlet and outlet holes are arranged on the upper, lower, left and right sides of the cabinet to facilitate wiring.
PZ30-B (formerly PZ30X) modular terminal combination distribution box series is a device with 9mm terminal electrical
equipment. It is suitable for residential, station, commercial network and industrial mine with AC 50Hz, rated voltage of 220V
and 380V. The enterprise's power distribution is a complete set of devices that control the electrical equipment and protect
against overload, short circuit, over voltage and leakage.
PZ30-B modular terminal combination power distribution box series is divided into two types: fixed/concealed.

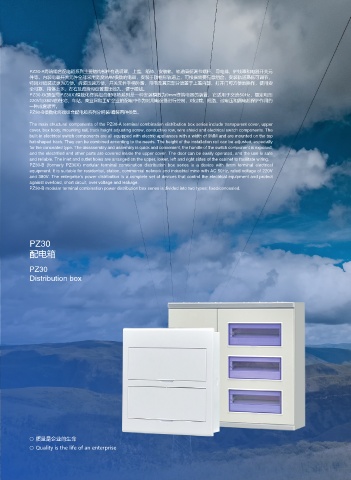

PZ30
配电箱

PZ30
Distribution box
