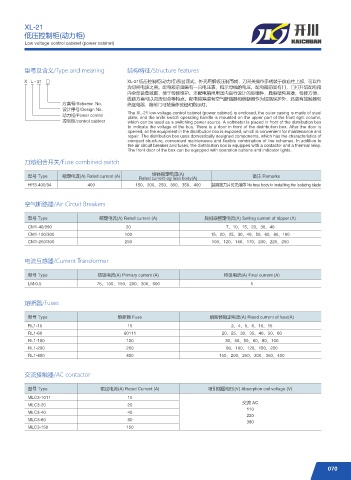

XL-21
低压控制柜(动力柜)
Low voltage control cabinet (power cabinet)

型号及含义/Type and meaning 结构特征/Structure features

X L - 21 □ XL-21低压控制柜(动力柜)系封闭式，外壳用钢板压制而成，刀开关操作手柄装于前右柱上部，可以作
为切换电源之用。配电箱前面装有一只电压表，指示母线的电压。配电箱前面有门，门打开后配电箱
内全部设备敞露、便于检修维护。本配电箱用用国内自行设计的型组件，具有结构紧凑，检修方便，
线路方案可以灵活组合等特点。配电箱除装有空气断路器和熔断器作为短路保护外，还装有接触器和
方案号/Scheme No. 热继电器，箱前门可装操作按钮和指示灯。
设计序号/Design No. The XL-21 low-voltage control cabinet (power cabinet) is enclosed, the outer casing is made of steel
动力控/Power control plate, and the knife switch operating handle is mounted on the upper part of the front right column,
控制柜/control cabinet which can be used as a switching power source. A voltmeter is placed in front of the distribution box
to indicate the voltage of the bus. There is a door in front of the distribution box. After the door is
opened, all the equipment in the distribution box is exposed, which is convenient for maintenance and
repair. The distribution box uses domestically designed components, which has the characteristics of
compact structure, convenient maintenance and flexible combination of line schemes. In addition to
the air circuit breaker and fuses, the distribution box is equipped with a contactor and a thermal relay.
The front door of the box can be equipped with operation buttons and indicator lights.
刀熔组合开关/Fuse combined switch

型号 Type 额定电流(A) Rated current (A) 熔体额定电流(A) 备注 Remarks
Rated current og fuse body(A)
HR3-400/34 400 150、200、250、300、350、400 装隔离刀片时无溶体 No fuse body in installting the isolating blade

空气断路器/Air Circuit Breakers

型号 Type 额定电流(A) Rated current (A) 脱扣器整定电流(A) Setting current of tripper (A)
CM1-40/390 20 7、10、15、20、30、40
CM1-100/300 100 15、20、25、30、40、50、60、80、100
CM1-250/300 250 100、120、140、170、200、225、250

电流互感器/Current Transformer

型号 Type 初级电流(A) Primary current (A) 终级电流(A) Final current (A)
LM-0.5 75、100、150、200、300、600 5

熔断器/Fuses

型号 Type 熔断器 Fuse 熔断体额定电流(A) Rtaed current of fuse(A)
RL1-15 15 2、4、5、6、10、15
RL1-60 60111 20、25、30、35、40、50、60
RL1-100 100 30、40、50、60、80、100
RL1-200 200 80、100、120、150、200
RL1-400 400 150、200、250、300、350、400

交流接触器/AC contactor

型号 Type 额定电流(A) Rated Current (A) 吸引线圈电压(V) Absorption coil voltage (V)
MLC3-1011 10
MLC3-20 20 交流 AC
110
MLC3-40 40
220
MLC3-80 80
380
MLC3-150 150
