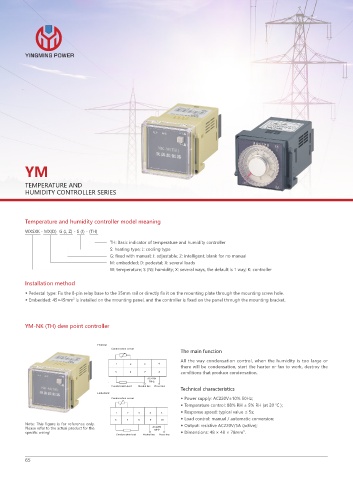

YINGMING POWER

YM

TEMPERATURE AND
HUMIDITY CONTROLLER SERIES

Temperature and humidity controller model meaning
WXSXK - MX(D) G (J, Z) - S (J) - (TH)
TH: Basic indicator of temperature and humidity controller
S: heating type; J: cooling type
G: fixed with manual; J: adjustable; Z: intelligent; blank for no manual
M: embedded; D: pedestal; X: several loads
W: temperature; S (N): humidity; X: several ways, the default is 1 way; K: controller

Installation method
◆ Pedestal type: Fix the 8-pin relay base to the 35mm rail or directly fix it on the mounting plate through the mounting screw hole.
◆ Embedded: 45×45mm is installed on the mounting panel, and the controller is fixed on the panel through the mounting bracket.
2

YM-NK (TH) dew point controller

1FEFTUBM
$POEFOTBUJPO TFOTPS
The main function
All the way condensation control, when the humidity is too large or

there will be condensation, start the heater or fan to work, destroy the
conditions that produce condensation.
"$ 7
)[
$POEFOTBUJPO MPBE /FVUSBM MJOF 1IBTF MJOF
Technical characteristics
&NCFEEFE
$POEFOTBUJPO TFOTPS ◆ Power supply: AC220V±10% 50Hz;
◆ Temperature control: 88% RH ± 5% RH (at 20 ℃ );
◆ Response speed: typical value ≤ 5s;

◆ Load control: manual / automatic conversion;

Note: This figure is for reference only. ◆ Output: resistive AC220V/5A (active);
Please refer to the actual product for the "$ 7
)[
specific wiring! ◆ Dimensions: 48 × 48 × 78mm . 3
$POEFOTBUJPO MPBE /FVUSBM MJOF 1IBTF MJOF
65
