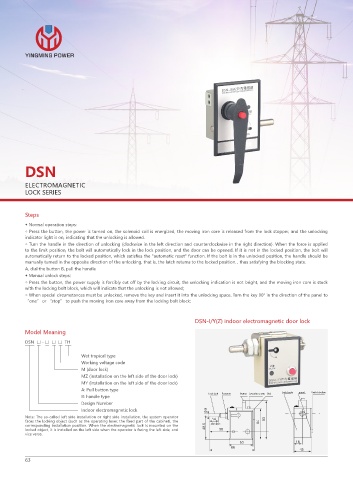

Page 70 - YINGMING POWER(HIGH & LOW VOLTAGE SWITCHGEARS)

YINGMING POWER

DSN

ELECTROMAGNETIC
LOCK SERIES

Steps

◆ Normal operation steps:
◇ Press the button, the power is turned on, the solenoid coil is energized, the moving iron core is released from the lock stopper, and the unlocking
indicator light is on, indicating that the unlocking is allowed.
◇ Turn the handle in the direction of unlocking (clockwise in the left direction and counterclockwise in the right direction). When the force is applied
to the limit position, the bolt will automatically lock in the lock position, and the door can be opened. If it is not in the locked position, the bolt will
automatically return to the locked position, which satisfies the "automatic reset" function. If the bolt is in the unlocked position, the handle should be
manually turned in the opposite direction of the unlocking, that is, the latch returns to the locked position. , thus satisfying the blocking state.
A, dial the button B, pull the handle
◆ Manual unlock steps:
◇ Press the button, the power supply is forcibly cut off by the locking circuit, the unlocking indication is not bright, and the moving iron core is stuck
with the locking bolt block, which will indicate that the unlocking is not allowed;
◇ When special circumstances must be unlocked, remove the key and insert it into the unlocking space. Turn the key 90° in the direction of the panel to
“one” or “stop” to push the moving iron core away from the locking bolt block;

DSN-I/Y(Z) indoor electromagnetic door lock
Model Meaning
DSN □ - □ □ □ TH

Wet tropical type
Working voltage code
M (door lock)
MZ (installation on the left side of the door lock)
MY (installation on the left side of the door lock)
A: Pull button type
-PDL CPMU 'BTUFOFS #VUUPO 4FDVSJUZ TDSFX %JBM -PDL CPEZ QBOFM 4XJUDI CVUUPO
B: handle type
Design Number
Indoor electromagnetic lock œ
Note: The so-called left side installation or right side installation, the system operator
faces the locking object (such as the operating lever, the fixed part of the cabinet), the
corresponding installation position. When the electromagnetic lock is mounted on the TUSPLF
locked object, it is installed on the left side when the operator is facing the left side, and
vice versa.

63
