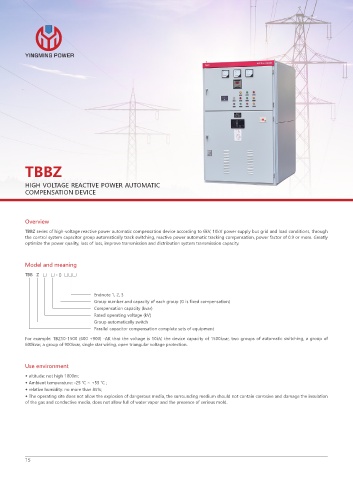

Page 22 - YINGMING POWER(HIGH & LOW VOLTAGE SWITCHGEARS)

YINGMING POWER

TBBZ

HIGH VOLTAGE REACTIVE POWER AUTOMATIC
COMPENSATION DEVICE

Overview
TBBZ series of high-voltage reactive power automatic compensation device according to 6kV, 10kV power supply bus grid and load conditions, through
the control system capacitor group automatically track switching, reactive power automatic tracking compensation, power factor of 0.9 or more. Greatly
optimize the power quality, loss of loss, improve transmission and distribution system transmission capacity.

Model and meaning
TBB Z □ □ - () □□□

Endnote 1, 2, 3
Group number and capacity of each group (G is fixed compensation)
Compensation capacity (kvar)
Rated operating voltage (kV)
Group automatically switch
Parallel capacitor compensation complete sets of equipment
For example: TBZ10-1500 (600 +900) -AK that the voltage is 10kV, the device capacity of 1500kvar, two groups of automatic switching, a group of
600kvar, a group of 900kvar, single star wiring, open triangular voltage protection.

Use environment
◆ altitude: not high 1000m;
◆ Ambient temperature: -25 ℃ ~ +55 ℃ ;
◆ relative humidity: no more than 85%;
◆ The operating site does not allow the explosion of dangerous media, the surrounding medium should not contain corrosive and damage the insulation
of the gas and conductive media, does not allow full of water vapor and the presence of serious mold.
