GN30-12
          INDOOR ROTARY HIGH VOLTAGE
          ISOLATING SWITCH                                                                           YINGMING POWER

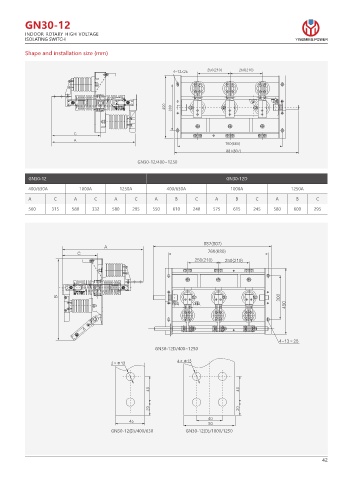

          Shape and installation size (mm)



                                                               9










                          $
                          "



                                               GN30-12/400~1250

           GN30-12                                                           GN30-12D
           400/630A         1000A        1250A           400/630A              1000A               1250A
           A       C      A      C      A     C      A      B      C      A     B      C      A      B      C
           560    315    580    332    580    295   550    610    240    575    615   245    580    600    295







                                    "

                           $






                    #







                                                                                                   f
                                                     GN30-12D/400~1250

                                                              fŸ
                                       fŸ










                                      GN30-12(D)/400/630        GN30-12(D)/1000/1250
