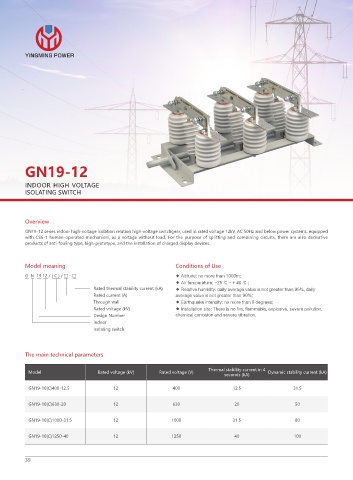

Page 46 - YINGMING POWER(HIGH VOLTAGE)

YINGMING POWER

GN19-12

INDOOR HIGH VOLTAGE
ISOLATING SWITCH

Overview
GN19-12 series indoor high-voltage isolation relation high-voltage switchgear, used in rated voltage 12kV, AC 50Hz and below power systems, equipped
with CS6-1 human-operated mechanism, as a voltage without load, For the purpose of splitting and combining circuits, there are also derivative
products of anti-fouling type, high-prototype, and the installation of charged display devices.

Model meaning Conditions of Use

G N 19 12 / ( C ) / □-□ ◆ Altitude: no more than 1000m;
◆ Air temperature: -25 ℃ ~ + 40 ℃ ;
Rated thermal stability current (kA) ◆ Relative humidity: daily average value is not greater than 95%, daily
Rated current (A) average value is not greater than 90%;
Through wall ◆ Earthquake intensity: no more than 8 degrees;
Rated voltage (kV) ◆ Installation site: There is no fire, flammable, explosive, severe pollution,
Design Number chemical corrosion and severe vibration.
indoor
Isolating switch

The main technical parameters

Thermal stability current in 4
Model Rated voltage (kV) Rated voltage (V) Dynamic stability current (kA)
seconds (kA)
GN19-10(C)400-12.5 12 400 12.5 31.5

GN19-10(C)630-20 12 630 20 50

GN19-10(C)1000-31.5 12 1000 31.5 80

GN19-10(C)1250-40 12 1250 40 100

39
