GCD-12kV
OUTDOOR HIGH VOLTAGE
ISOLATING SWITCH YINGMING POWER

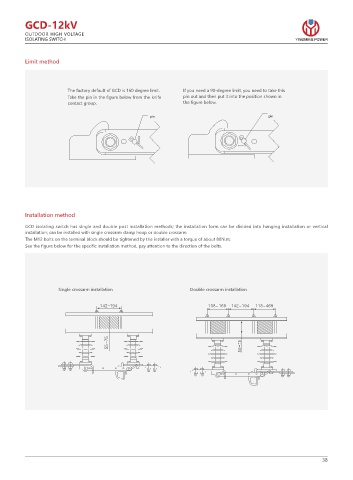

Limit method
The factory default of GCD is 160 degree limit. If you need a 90-degree limit, you need to take this
Take the pin in the figure below from the knife pin out and then put it into the position shown in
contact group. the figure below.
pin pin
Installation method
GCD isolating switch has single and double post installation methods; the installation form can be divided into hanging installation or vertical
installation; can be installed with single crossarm clamp hoop or double crossarm
The M12 bolts on the terminal block should be tightened by the installer with a torque of about 80N.m;
See the figure below for the specific installation method, pay attention to the direction of the bolts.
Single crossarm installation Double crossarm installation
38
