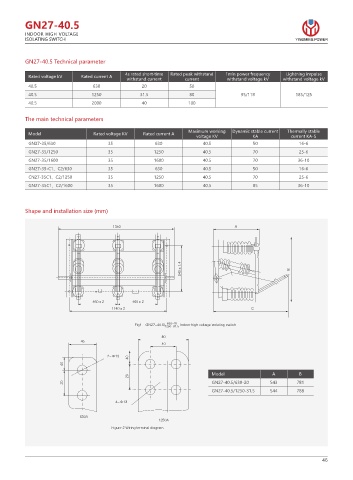

Page 53 - YINGMING POWER(HIGH VOLTAGE)

GN27-40.5
INDOOR HIGH VOLTAGE
ISOLATING SWITCH YINGMING POWER

GN27-40.5 Technical parameter

4s rated short-time Rated peak withstand 1min power frequency Lightning impulse
Rated voltage kV Rated current A
withstand current current withstand voltage kV withstand voltage kV
40.5 630 20 50
40.5 1250 31.5 80 95/118 185/125
40.5 2000 40 100

The main technical parameters

Maximum working Dynamic stable current Thermally stable
Model Rated voltage KV Rated current A
voltage KV KA current KA-S
GN27-35/630 35 630 40.5 50 16-6
GN27-35/1250 35 1250 40.5 70 25-6
GN27-35/1600 35 1600 40.5 70 36-10
GN27-35-C1、C2/630 35 630 40.5 50 16-6
CN27-35C1、C2/1250 35 1250 40.5 70 25-6
GN27-35C1、C2/1600 35 1600 40.5 85 36-10

Shape and installation size (mm)

"

d #

d d
d $

'JH (/ *OEPPS IJHI WPMUBHF JTPMBUJOH TXJUDI

Ÿ

Model A B

GN27-40.5/630-20 543 781
GN27-40.5/1250-31.5 544 788
Ÿ

"
"
'JHVSF 8JSJOH UFSNJOBM EJBHSBN

46
