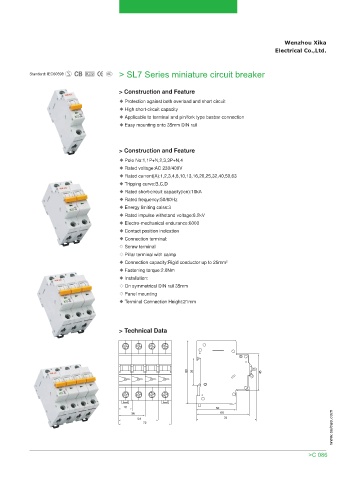

Standard: IEC60898 > SL7 Series miniature circuit breaker
> Construction and Feature
Protection against both overload and short circuit
High short-circuit capacity
Applicable to terminal and pin/fork type busbar connection
Easy mounting onto 35mm DIN rail
> Construction and Feature
Pole No:1,1P+N,2,3,3P+N,4
Rated voltage:AC 230/400V
Rated current(A):1,2,3,4,6,10,13,16,20,25,32,40,50,63
Tripping curve:B,C,D
Rated short-circuit capacity(lcn):10kA
Rated frequency:50/60Hz
Energy limiting calss:3
Rated impulse withstand voltage:6.2kV
Electro-mechanical endurance:6000
Contact position indication
Connection terminal:
Screw terminal
Pillar terminal with calmp
Connection capacity:Rigid conductor up to 25mm 2
Fastening torque:2.0Nm
Installation:
On symmetrical DIN rail 35mm
Panel mounting
Terminal Connection Height:21mm
> Technical Data
