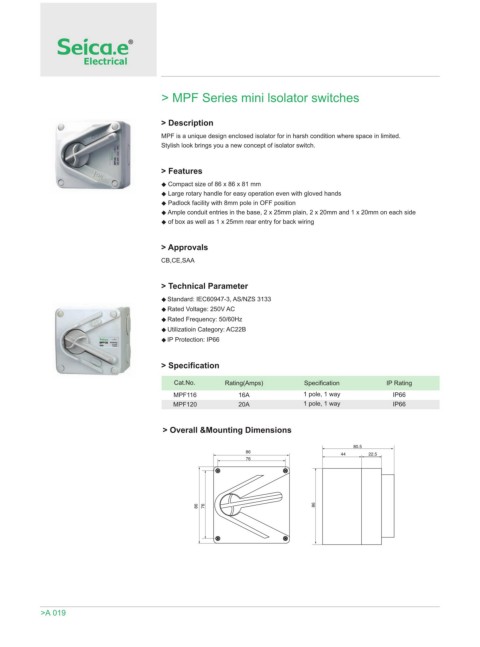

> MPF Series mini lsolator switches
> Description
MPF is a unique design enclosed isolator for in harsh condition where space in limited.
Stylish look brings you a new concept of isolator switch.
> Features
Compact size of 86 x 86 x 81 mm
Large rotary handle for easy operation even with gloved hands
Padlock facility with 8mm pole in OFF position
Ample conduit entries in the base, 2 x 25mm plain, 2 x 20mm and 1 x 20mm on each side
of box as well as 1 x 25mm rear entry for back wiring
> Approvals
CB,CE,SAA
> Technical Parameter
Standard: IEC60947-3, AS/NZS 3133
Rated Voltage: 250V AC
Rated Frequency: 50/60Hz
Utilizatioin Category: AC22B
IP Protection: IP66
> Specification
Cat.No. Rating(Amps) Specification IP Rating
MPF116 16A 1 pole, 1 way IP66
MPF120 20A 1 pole, 1 way IP66
> Overall &Mounting Dimensions
