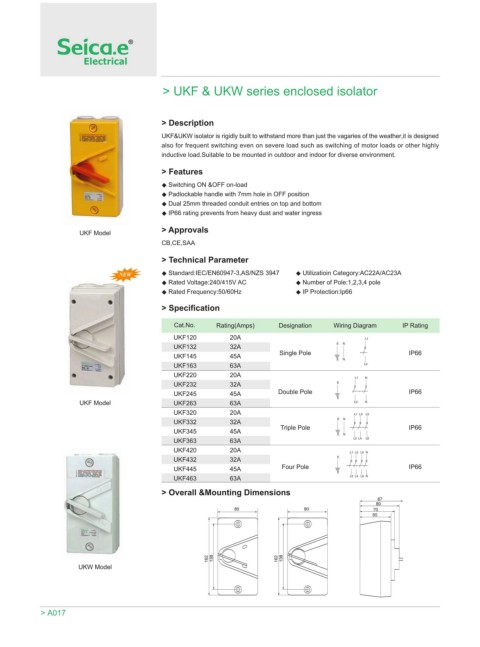

> UKF & UKW series enclosed isolator
> Description
UKF&UKW isolator is rigidly built to withstand more than just the vagaries of the weather,it is designed
also for frequent switching even on severe load such as switching of motor loads or other highly
inductive load.Suitable to be mounted in outdoor and indoor for diverse environment.
> Features
Switching ON &OFF on-load
Padlockable handle with 7mm hole in OFF position
Dual 25mm threaded conduit entries on top and bottom
IP66 rating prevents from heavy dust and water ingress
UKF Model > Approvals
CB,CE,SAA
> Technical Parameter
NEW Standard:IEC/EN60947-3,AS/NZS 3947 Utilizatioin Category:AC22A/AC23A
Rated Voltage:240/415V AC Number of Pole:1,2,3,4 pole
Rated Frequency:50/60Hz IP Protection:Ip66
> Specification
Cat.No. Rating(Amps) Designation Wiring Diagram IP Rating
UKF120 20A
UKF132 32A
UKF145 45A Single Pole IP66
UKF163 63A
UKF220 20A
UKF232 32A
UKF245 45A Double Pole IP66
UKF Model UKF263 63A
UKF320 20A
UKF332 32A
UKF345 45A Triple Pole IP66
UKF363 63A
UKF420 20A
UKF432 32A
UKF445 45A Four Pole IP66
UKF463 63A
> Overall &Mounting Dimensions
UKW Model
> A017
