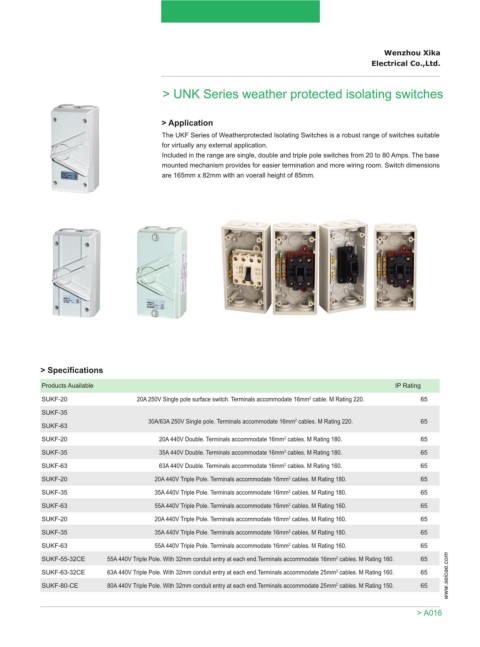

> UNK Series weather protected isolating switches

> Application
The UKF Series of Weatherprotected Isolating Switches is a robust range of switches suitable
for virtually any external application.
Included in the range are single, double and triple pole switches from 20 to 80 Amps. The base
mounted mechanism provides for easier termination and more wiring room. Switch dimensions
are 165mm x 82mm with an voerall height of 85mm.

> Specifications

Products Auailable IP Rating
2
SUKF-20 20A 250V Single pole surface switch. Terminals accommodate 16mm cable. M Rating 220. 65
SUKF-35
30A/63A 250V Single pole. Terminals accommodate 16mm cables. M Rating 220. 65
2
SUKF-63
SUKF-20 20A 440V Double. Terminals accommodate 16mm cables. M Rating 180. 65
2
2
SUKF-35 35A 440V Double. Terminals accommodate 16mm cables. M Rating 180. 65
2
SUKF-63 63A 440V Double. Terminals accommodate 16mm cables. M Rating 160. 65
SUKF-20 20A 440V Triple Pole. Terminals accommodate 16mm cables. M Rating 180. 65
2
2
SUKF-35 35A 440V Triple Pole. Terminals accommodate 16mm cables. M Rating 180. 65
2
SUKF-63 55A 440V Triple Pole. Terminals accommodate 16mm cables. M Rating 160. 65
2
SUKF-20 20A 440V Triple Pole. Terminals accommodate 16mm cables. M Rating 160. 65
2
SUKF-35 35A 440V Triple Pole. Terminals accommodate 16mm cables. M Rating 180. 65
SUKF-63 55A 440V Triple Pole. Terminals accommodate 16mm cables. M Rating 160. 65
2
www.seicae.com
2
SUKF-55-32CE 55A 440V Triple Pole. With 32mm conduit entry at each end.Terminals accommodate 16mm cables. M Rating 160. 65
2
SUKF-63-32CE 63A 440V Triple Pole. With 32mm conduit entry at each end.Terminals accommodate 25mm cables. M Rating 160. 65
SUKF-80-CE 80A 440V Triple Pole. With 32mm conduit entry at each end.Terminals accommodate 25mm cables. M Rating 150. 65
2

> A016
