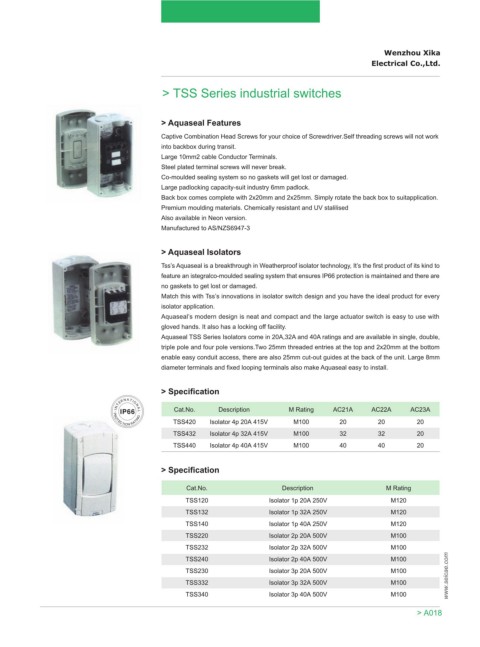

> TSS Series industrial switches

> Aquaseal Features
Captive Combination Head Screws for your choice of Screwdriver.Self threading screws will not work
into backbox during transit.
Large 10mm2 cable Conductor Terminals.
Steel plated terminal screws will never break.
Co-moulded sealing system so no gaskets will get lost or damaged.
Large padlocking capacity-suit industry 6mm padlock.
Back box comes complete with 2x20mm and 2x25mm. Simply rotate the back box to suitapplication.
Premium moulding materials. Chemically resistant and UV stalilised
Also available in Neon version.
Manufactured to AS/NZS6947-3

> Aquaseal Isolators

Tss’s Aquaseal is a breakthrough in Weatherproof isolator technology, It’s the first product of its kind to
feature an istegralco-moulded sealing system that ensures IP66 protection is maintained and there are
no gaskets to get lost or damaged.
Match this with Tss’s innovations in isolator switch design and you have the ideal product for every
isolator application.
Aquaseal’s modern design is neat and compact and the large actuator switch is easy to use with
gloved hands. It also has a locking off facility.
Aquaseal TSS Series Isolators come in 20A,32A and 40A ratings and are available in single, double,
triple pole and four pole versions.Two 25mm threaded entries at the top and 2x20mm at the bottom
enable easy conduit access, there are also 25mm cut-out guides at the back of the unit. Large 8mm
diameter terminals and fixed looping terminals also make Aquaseal easy to install.

> Specification

Cat.No. Description M Rating AC21A AC22A AC23A
TSS420 Isolator 4p 20A 415V M100 20 20 20
TSS432 Isolator 4p 32A 415V M100 32 32 20
TSS440 Isolator 4p 40A 415V M100 40 40 20

> Specification

Cat.No. Description M Rating
TSS120 Isolator 1p 20A 250V M120
TSS132 Isolator 1p 32A 250V M120
TSS140 Isolator 1p 40A 250V M120
TSS220 Isolator 2p 20A 500V M100
TSS232 Isolator 2p 32A 500V M100
TSS240 Isolator 2p 40A 500V M100
TSS230 Isolator 3p 20A 500V M100
TSS332 Isolator 3p 32A 500V M100 www.seicae.com
TSS340 Isolator 3p 40A 500V M100
