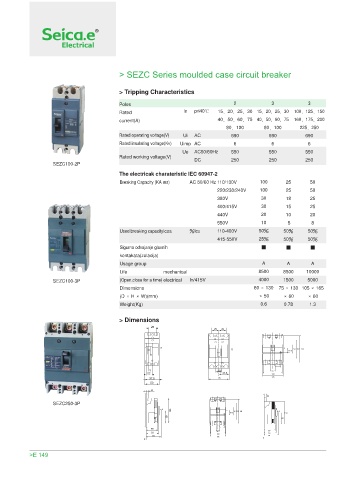

> SEZC Series moulded case circuit breaker

> Tripping Characteristics

Poles 2 3 3
Rated In pri40 15 20 25 30 15 20 25 30 100 125 150
current(A) 40 50 60 75 40 50 60 75 160 175 200
80 100 80 100 225 250
Rated operating voltage(V) Ui AC 690 690 690
Rated insulating voltage(Kv) Uimp AC 6 6 6
Ue AC50/60Hz 550 550 550
Rated working voltage(V) DC 250 250 250
SEZC100-2P

The electricak charateristic IEC 60947-2
Breaking Capacity (KA ms) AC 50/60 Hz 110/130V 100 25 50
220/230/240V 100 25 50
380V 30 18 25
400/415V 30 15 25
440V 20 10 20
550V 10 5 8
Used breaking capacitylcos Icu 110-400V 50 50 50
415-550V 25 50 50
Sigurno odvajanje glavnih
kontakata(zolacija)
Usage group A A A
Life mechanical 8500 8500 10000
SEZC100-3P (Open.close for a time) electrical In/415V 4000 1500 5000
Dimensions 60 130 75 130 105 165
(D H W)(mm) 50 60 60
Weight(Kg) 0.6 0.78 1.3

> Dimensions

SEZC250-3P

>E 149
