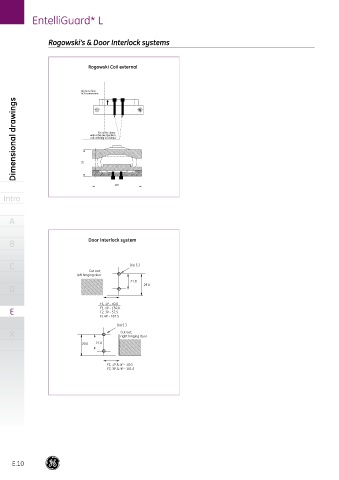

EntelliGuard* L

Rogowski’s & Door Interlock systems

Rogowski Coil external

Arrow to face
ACB connection
Dimensional drawings 58 with cable ties (position

Fix coil to clamp
coil centrally on clamp)

110
Intro

A

B Door Interlock system

C Dia 5.3
Cut out;
left hinging door
21.0
D 29.0

F1, 3P - 30.0
E F1, 4P - 130.0
F2, 3P - 57.5
Fr, 4P - 187.5
Dia 5.3
X Cut out;
right hinging door
29.0 21.0

F1, 3P & 4P - 30.0
F2, 3P & 4P - 101.5
