EntelliGuard* L

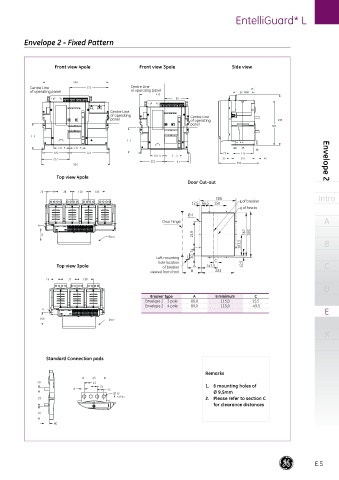

Envelope 2 - Fixed Pattern

Front view 4pole Front view 3pole Side view

Centre Line Centre Line
of operating panel of operating panel

Centre Line
of operating Centre Line
panel of operating
panel

Top view 4pole Envelope 2
Door Cut-out

308 Intro
12,5 66,5 150 of breaker
of fascia
Ø 4
Door hinge A

219 367 392
183,5 B
74
Left mounting 30
hole location C
Top view 3pole of breaker A 141,5 12,5 C
viewed from front B 283

D
Breaker type A B minimum C
Envelope 2 3 pole 80,0 115,0 15,5
Envelope 2 4 pole 80,0 115,0 -49,5
E

X

Standard Connection pads

Remarks

1. 6 mounting holes of
Ø 9,5mm
2. Please refer to section C
for clearance distances

E.5
