EntelliGuard* L

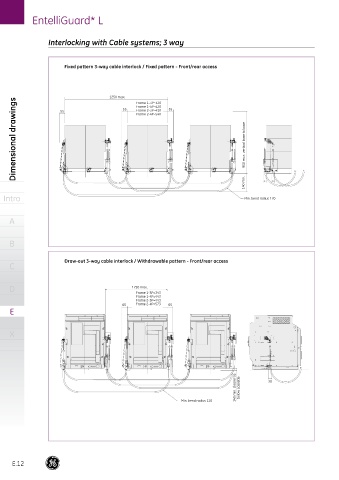

Interlocking with Cable systems; 3 way

Fixed pattern 3-way cable interlock / Fixed pattern - Front/rear access

1250 max. 55 Frame 1-3P=320 55
Dimensional drawings Frame 3-4P=945 900 max. vertical base to base
Frame 1-4P=420
Frame 2-3P=410
55
Frame 2-4P=540
Frame 3-3P=715

140 min.

Intro Min. bend radius 120

A

B

Draw-out 3-way cable interlock / Withdrawable pattern - Front/rear access
C

D 1250 max.
Frame 1-3P=343
Frame 1-4P=443
Frame 2-3P=443
65 Frame 2-4P=573 65
900 max. vertical base to base
E Frame 3-3P=743
Frame 3-4P=973
X

140 min. clearence below cassette 30

Min. bend radius 120

E.12
