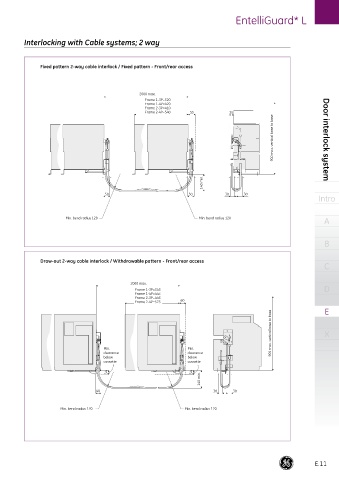

EntelliGuard* L

Interlocking with Cable systems; 2 way

Fixed pattern 2-way cable interlock / Fixed pattern - Front/rear access
Fixed pattern front / Rear Access ACB's

2000 max.
Frame 1-3P=320
Frame 1-4P=420
Frame 2-3P=410
Frame 2-4P=540 55 35
Frame 3-3P=715
900 max. vertical base to base Door interlock system
Frame 3-4P=945

140 min.

50 50 30 30
Intro

A
Min. bend radius 120 Min. bend radius 120

B

Draw-out 2-way cable interlock / Withdrawable pattern - Front/rear access
Withdrawable front / Rear Access ACB's
C

2000 max.
Frame 1-3P=343 D
Frame 1-4P=443
Frame 2-3P=443
Frame 2-4P=573 60
Frame 3-3P=743
Frame 3-4P=973 E
900 max. vertical base to base X

Min. Min.
clearance clearance
below below
cassette cassette
34 34
140 min.

40 30 30

Min. bend radius 120 Min. bend radius 120
