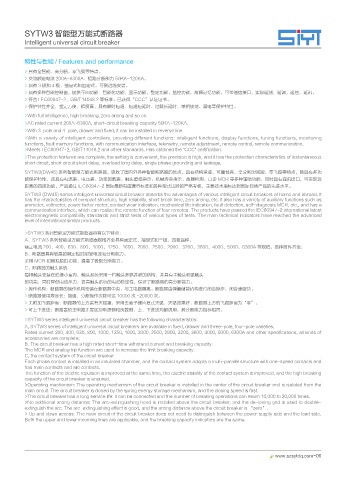

SYTW3 智能型万能式断路器
Intelligent universal circuit breaker

特性与性能 / Features and performance

> 具有全智能、高分断，零飞弧等特点。
> 交流额定电流 200A~6300A、短路分断能力 50KA~120KA。
> 具有 3 极和 4 极，抽屉式和固定式，可倒进线安装。
> 具有多种智能控制器，提供不同功能：智能化功能，显示功能，整定功能，监控功能，故障记忆功能，可带通信接口，实现遥测，遥调，遥控，遥讯。
> 符合 I EC60947-2，GB/T14048.2 等标准。已获得“CCC”认证证书。
> 保护特性齐全，整定方便，精度高，具有瞬时短路、短路短延时、过载长延时、单相接地、漏电等保护特性。
>With full intelligence, high breaking, zero arcing and so on.
>AC rated current 200A~6300A, short-circuit breaking capacity 50KA~120KA.
>With 3-pole and 4-pole, drawer and fixed, it can be installed in reverse line.
>With a variety of intelligent controllers, providing different functions: intelligent functions, display functions, tuning functions, monitoring
functions, fault memory functions, with communication interface, telemetry, remote adjustment, remote control, remote communication.
>Meets I EC60947-2, GB/T14048.2 and other standards. Has obtained the "CCC" certification.
>The protection features are complete, the setting is convenient, the precision is high, and it has the protection characteristics of instantaneous
short circuit, short circuit short delay, overload long delay, single phase grounding and leakage.
SYTW3(DW45) 系列智能型万能式断路器，吸收了国内外各种智能断路器的优点，具有结构紧凑、可靠性高、全分断时间短、零飞弧等特点，除具有多功
能保护特性，还具有电流表、电压表、功率因数表、触头磨损指示、机械寿命指示、故障检测、自诊 MCR 等多种辅助功能，同时具有通讯接口，可实现远
距离的四遥功能。产品通过 IEC60947-2 国际最新电磁兼容标准和各种型式试验的严格考核，主要技术指标达到国际同类产品的先进水平。
SYTW3 (DW45) series intelligent universal circuit breaker absorbs the advantages of various intelligent circuit breakers at home and abroad. It
has the characteristics of compact structure, high reliability, short break time, zero arcing, etc. It also has a variety of auxiliary functions such as
ammeter, voltmeter, power factor meter, contact wear indication, mechanical life indication, fault detection, self-diagnosis MCR, etc., and has a
communication interface, which can realize the remote function of four remotes. The products have passed the IEC60947-2 international latest
electromagnetic compatibility standards and strict tests of various types of tests. The main technical indicators have reached the advanced
level of international similar products.

>SYTW3 系列智能型万能式断路器具有以下特点：
A、SYTW3 系列智能型万能式断路器规格齐全具有固定式、抽屉式和三极、四极品种。
额定电流 200、400、630、800、1000、1250、1600、2000、2500、2900、3200、3600、4000、5000、6300A 等规格，各种附件齐全；
B、断路器具有较高的额定短时耐受电流和分断能力。
采用 MCR 和模拟脱扣功能，提高了极限分断能力。
C、断路器的触头系统
每相触头安装在绝缘小室内，触头系统采用一档触头多路并联的结构，并具有主触头和弧触头
的功能，同时降低电动斥力，提高触头系统的电动稳定性，保证了断路器的高分断能力。
> 操作机构：断路器的操作机构安装在断路器中央，与主电路隔离。断路器由弹簧储能机构进行闭合操作，闭合速度快。
> 断路器使用寿命长：接通，分断操作次数可达 10000 次 -20000 次。
> 无附加飞弧距离：断路器的上方装有灭弧罩，采用去离子栅片复式灭弧，灭弧效果好，断路器上方的飞弧距离为“零”。
> 可上下进线：断路器的主电路无需区别电源侧和负载侧，上、下进线均都适用，其分断能力指标相同。
>SYTW3 series intelligent universal circuit breaker has the following characteristics:
A, SYTW3 series of intelligent universal circuit breakers are available in fixed, drawer and three-pole, four-pole varieties.
Rated current 200, 400, 630, 800, 1000, 1250, 1600, 2000, 2500, 2900, 3200, 3600, 4000, 5000, 6300A and other specifications, all kinds of
accessories are complete;
B. The circuit breaker has a high rated short-time withstand current and breaking capacity.
The MCR and analog trip function are used to increase the limit breaking capacity.
C, the contact system of the circuit breaker
Each phase contact is installed in an insulated chamber, and the contact system adopts a multi-parallel structure with one-speed contacts and
has main contacts and arc contacts.
The function of the electric repulsion is improved at the same time, the electric stability of the contact system is improved, and the high breaking
capacity of the circuit breaker is ensured.
>Operating mechanism: The operating mechanism of the circuit breaker is installed in the center of the circuit breaker and is isolated from the
main circuit. The circuit breaker is closed by the spring energy storage mechanism, and the closing speed is fast.
>The circuit breaker has a long service life: it can be connected and the number of breaking operations can reach 10,000 to 20,000 times.
>No additional arcing distance: The arc-extinguishing hood is installed above the circuit breaker, and the de-ioning grid is used to double-
extinguish the arc. The arc-extinguishing effect is good, and the arcing distance above the circuit breaker is “zero”.
> Up and down access: The main circuit of the circuit breaker does not need to distinguish between the power supply side and the load side.
Both the upper and lower incoming lines are applicable, and the breaking capacity indicators are the same.
