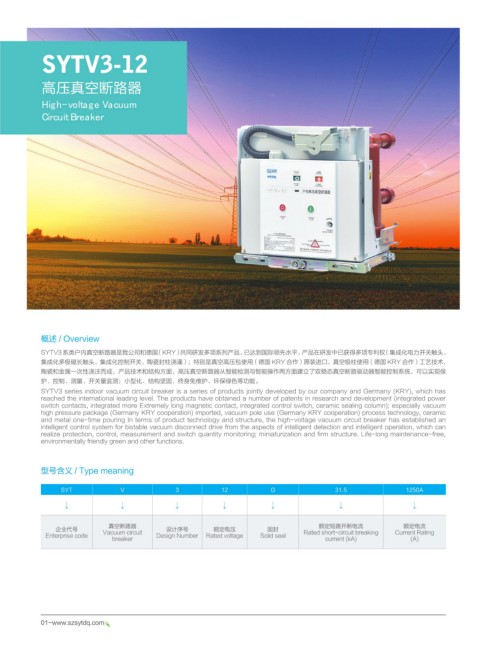

SYTV3-12

高压真空断路器

͕Ͷʹ͵̺΃ͼ͹΁ͮʹͲḤͣͮͰ΂΂ͺ
͐ͶͿͰ΂Ͷ΁Ḥ͏ͿͲͮ͸ͲͿ

概述 / Overview

SYTV3 系类户内真空断路器是我公司和德国（KRY）共同研发多项系列产品，已达到国际领先水平，产品在研发中已获得多项专利权（集成化电力开关触头、
集成化多极磁长触头、集成化控制开关、陶瓷封柱浇灌）；特别是真空高压包使用（德国 KRY 合作）原装进口，真空极柱使用（德国 KRY 合作）工艺技术，
陶瓷和金属一次性浇注而成，产品技术和结构方面，高压真空断路器从智能检测与智能操作两方面建立了双稳态真空断路驱动器智能控制系统，可以实现保
护、控制、测量、开关量监测；小型化、结构坚固、终身免维护、环保绿色等功能。
SYTV3 series indoor vacuum circuit breaker is a series of products jointly developed by our company and Germany (KRY), which has
reached the international leading level. The products have obtained a number of patents in research and development (integrated power
switch contacts, integrated more Extremely long magnetic contact, integrated control switch, ceramic sealing column); especially vacuum
high pressure package (Germany KRY cooperation) imported, vacuum pole use (Germany KRY cooperation) process technology, ceramic
and metal one-time pouring In terms of product technology and structure, the high-voltage vacuum circuit breaker has established an
intelligent control system for bistable vacuum disconnect drive from the aspects of intelligent detection and intelligent operation, which can
realize protection, control, measurement and switch quantity monitoring; miniaturization and firm structure. Life-long maintenance-free,
environmentally friendly green and other functions.

型号含义 / Type meaning

SYT V 3 12 G 31.5 1250A

↓ ↓ ↓ ↓ ↓ ↓ ↓

真空断路器 额定短路开断电流 额定电流
企业代号 设计序号 额定电压 固封
Enterprise code Vacuum circuit Design Number Rated voltage Solid seal Rated short-circuit breaking Current Rating
breaker current (kA) (A)
