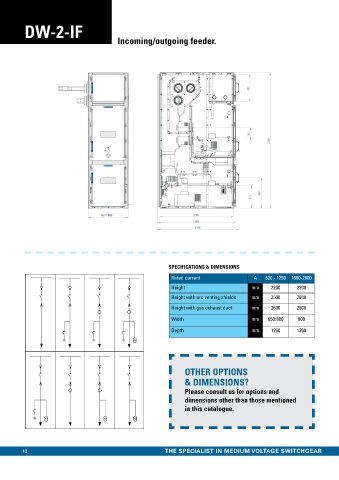

DW-2-IF
Incoming/outgoing feeder.
SPECIFICATIONS & DIMENSIONS
Rated current A 630 - 1250 1600-2000
Height mm 2200 2200
Height with arc venting shields mm 2500 2600
Height with gas exhaust duct mm 2600 2600
Width mm 650/800 800
Depth mm 1260 1260
OTHER OPTIONS
& DIMENSIONS?
Please consult us for options and
dimensions other than those mentioned
in this catalogue.
