P. 11

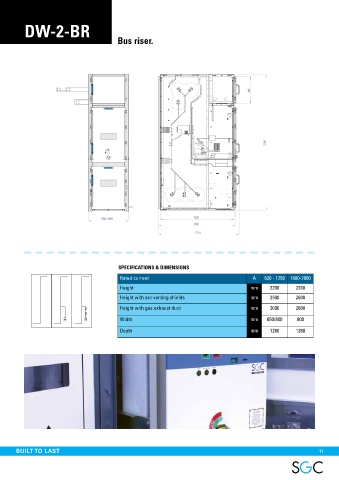

DW-2-BR
Bus riser.
SPECIFICATIONS & DIMENSIONS
Rated current A 630 - 1250 1600-2000
Height mm 2200 2200
Height with arc venting shields mm 2500 2600
Height with gas exhaust duct mm 2600 2600
Width mm 650/800 800
Depth mm 1260 1260
