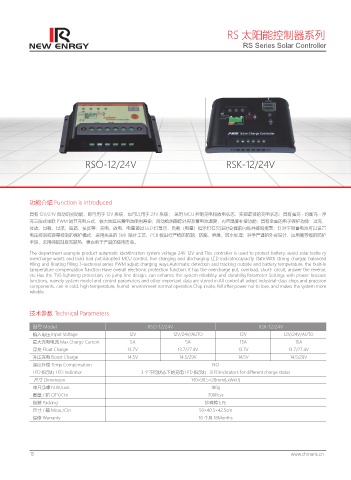

RS 太阳能控制器系列

RS Series Solar Controller

RSO-12/24V RSK-12/24V

功能介绍 Function is introduced
具有 12V/24V 自动识别功能，即可用于 12V 系统，也可以用于 24V 系统； 采用 MCU 控制充电和放电状态，实现最佳的充电状态；具有强充 - 均衡充 - 浮
充三段式串联 PWM 调节充电方式，极大地延长蓄电池使用寿命；自动检测跟踪外界及蓄电池温度，内置温度补偿功能；具有全面的电子保护功能：过充、
过放、过载、过流、短路、接反等：充电、放电、电量通过 LED 灯显示，负载（电量）指示灯在欠压时会提前闪烁并蜂呜报警；针对不同蓄电池可以设置
电压控制或容量控制的保护模式；采用先进的 SMT 贴片工艺，PCB 板进行严格的防潮、防腐、绝缘、防水处理；科学严谨的外形设计，运用高等级的防护
手段，采用纯铝制底壳散热，更有利于产品的使用寿命。

The department example product autamatic identification system voltage 24V 12V and.This controller is used to protect battery. avoid solar batte ry
overcharge wants and load had put.Adopted MCU control, five charging and discharging LED indicator,capacity state.With strong chargar, balanced
filling and floating fIlling 3-sectional series PWM adjust charging ways.Automatic detection and tracking outside and battery temperature, the built-in
tamperature compensation function.Have overall electronic protection function: it has the overcharge put, overload, short- circuit, answer the reverse,
etc.Has the TVS lightning protectian, no jump line design, can enhance the system reliability and durability.Parameter Settings with power lostsave
functions, namely system model and control parameters and other important data are stored in.All control all adopt industrial-class chips and pracision
components, can in cold, high temperature, humid environment normal operation.Chip inside, fell after power noi to lose, and makes tha system more
reliable.

技术参数 Technical Parameters

型号 Model RSO-12/24V RSK-12/24V
输入电压 Input Voltage 12V 12V/24V/AUTO 12V 12V/24V/AUTO
最大充电电流 Max.Charge Current 5A 5A 15A 15A
浮充 Float Charge 13.7V 13.7/27.4V 13.7V 13.7/27.4V
升压充电 Boost Charge 14.5V 14.5/29V 14.5V 14.5/29V
温度补偿 Temp.Compensation NO
LED 指示灯 LED Indicator 3 个不同状态下的充电 LED 指示灯 3LEDindicators for different charge status
尺寸 Dimension 140×90.5×28mm(LxWxH)
单只净重 N.W./unit 180g
数量 / 箱 QTY/Ctn 200Pcvs
包装 Packing 珍珠棉 EPE
尺寸 / 箱 Meas./Ctn 50×40.5×42.5cm
保修 Warranty 18 个月 18Months
