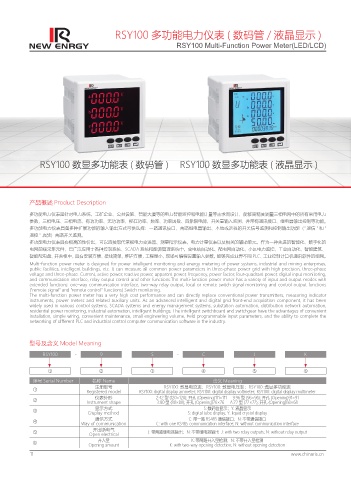

RSY100 多功能电力仪表 ( 数码管 / 液晶显示 )

RSY100 Multi-Function Power Meter(LED/LCD)

RSY100 数显多功能表 ( 数码管 ) RSY100 数显多功能表 ( 液晶显示 )

产品概述 Product Description
多功能电力仪表是针对电力系统、工矿企业、公共设施、智能大厦等的电力智能监控和电能计量等需求而设计，能够高精度测量三相电网中的所有常用电力
参数，三相电压、三相电流、有功功率、无功功率、视在功率、频率、功率因数、四象限电能、开关量输入监测，并带有通讯接口、继电器输出控制等功能。
多功能电力仪表具备多种扩展功能的输入输出方式可供选择：一路通讯接口、两路继电器输出、本地或远程的开关信号监测和控制输出功能（" 遥信 " 和 "
遥控 " 功能）两路开关监测。
多功能电力仪表具有极高的性价比，可以直接取代常规电力变送器、测量指示仪表、电力计量仪表以及相关的辅助单元。作为一种先进的智能化、数字化的
电网前端采集元件，已广泛应用于各种控制系统、SCADA 系统和能源管理系统中、变电站自动化、配电网自动化、小区电力监控、工业自动化、智能建筑、
智能配电盘、开关柜中，具有安装方便、接线简单、维护方便，工程量小、现场可编程设置输入参数、能够完成业界不同 PLC、工业控制计算机通讯软件的组网。
Multi-function power meter is designed for power intelligent monitoring and energy metering of power systems, industrial and mining enterprises,
public facilities, intelligent buildings, etc. It can measure all common power parameters in three-phase power grid with high precision, three-phase
voltage and three-phase. Current, active power, reactive power, apparent power, frequency, power factor, four-quadrant power, digital input monitoring,
and communication interface, relay output control and other functions.The multi-function power meter has a variety of input and output modes with
extended functions: one-way communication interface, two-way relay output, local or remote switch signal monitoring and control output functions
("remote signal" and "remote control" functions) Switch monitoring.
The multi-function power meter has a very high cost performance and can directly replace conventional power transmitters, measuring indicator
instruments, power meters and related auxiliary units. As an advanced intelligent and digital grid front-end acquisition component, it has been
widely used in various control systems, SCADA systems and energy management systems, substation automation, distribution network automation,
residential power monitoring, industrial automation, intelligent buildings, The intelligent switchboard and switchgear have the advantages of convenient
installation, simple wiring, convenient maintenance, small engineering volume, field programmable input parameters, and the ability to complete the
networking of different PLC and industrial control computer communication software in the industry.

型号及含义 Model Meaning

RSY100 - 9 S - C J K

① ② ③ ④ ⑤ ⑥
序号 Serial Number 名称 Name 含义 Meaning
注册型号
RSY100: 数显电流表；RSY100: 数显电压表；RSY100: 数显多功能表
① Registered model RSY100: digital display ammeter; RSY100: digital display voltmeter; RSY100: digital display multimeter
仪表外形
② Instrument shape 2:42 型 (120×120); 开孔 (Opening)111×111 9:96 型 (96×96); 开孔 (Opening)91×91
3:80 型 (80×80); 开孔 (Opening)76×76 A:72 型 (72×72); 开孔 (Opening)68×68
显示方式 S: 数码管显示；Y: 液晶显示
③
Display method S: digital tube display; Y: liquid crystal display
通信方式
C: 带一路 RS485 通信接口；N: 不带通信接口
④ Way of communication C: with one RS485 communication interface; N: without communication interface
开出断电气
⑤ Open electrical J: 带两路继电器输出；N: 不带继电器输出 J: with two relay outputs; N: without relay output
开入量 K: 带两路开入量检测；N: 不带开入量检测
⑥
Opening amount K: with two-way opening detection; N: without opening detection
