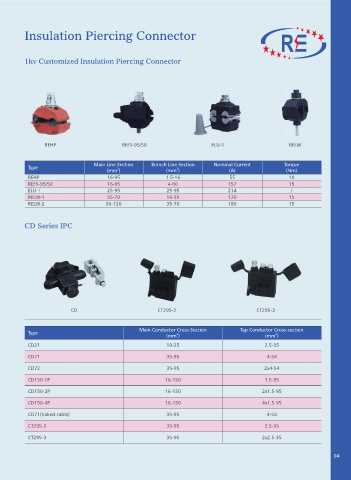

Insulation Piercing Connector
1kv Customized Insulation Piercing Connector
REHP REFS-95/50 ELU-1 RELW
Main Line Section Branch Line Section Nominal Current Torque
Type 2 2
(mm ) (mm ) (A) (Nm)
REHP 16-95 1.5-16 55 10
REFS-95/50 16-95 4-50 157 15
ELU-1 25-95 25-95 214 /
RELW-1 35-70 16-35 120 15
RELW-2 50-120 35-70 180 15
CD Series IPC
CD CT295-2 CT295-3
Main Conductor Cross-Section Tap Conductor Cross-section
Type 2 2
(mm ) (mm )
CD21 10-25 2.5-35
CD71 35-95 4-54
CD72 35-95 2x4-54
CD150-1P 16-150 1.5-95
CD150-2P 16-150 2x1.5-95
CD150-4P 16-150 4x1.5-95
CD71(naked cable) 35-95 4-54
CT295-2 35-95 2.5-35
CT295-3 35-95 2x2.5-35
