Insulation Piercing Connector

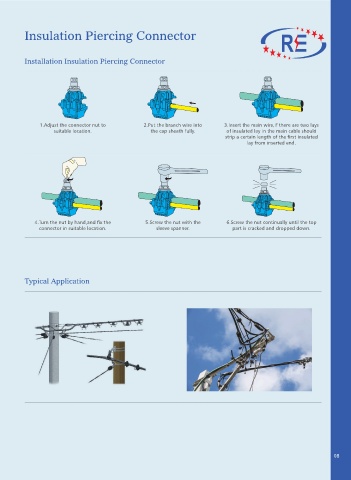

Installation Insulation Piercing Connector
1.Adjust the connector nut to 2.Put the branch wire into 3.Insert the main wire,if there are two lays
suitable location. the cap sheath fully. of insulated lay in the main cable should
strip a certain length of the first insulated
lay from inserted end.
4.Turn the nut by hand,and fix the 5.Screw the nut with the 6.Screw the nut continually until the top
connector in suitable location. sleeve spanner. part is cracked and dropped down.
Typical Application
