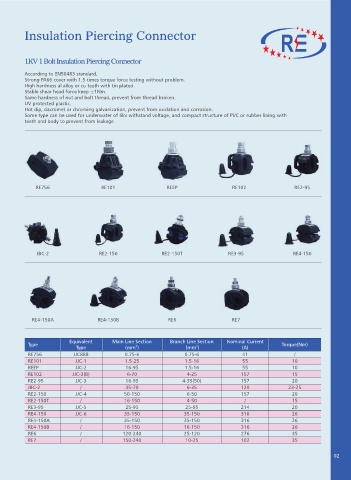

Insulation Piercing Connector

1KV 1 Bolt Insulation Piercing Connector

According to EN50483 standard,
Strong PA66 cover with 1.5 times torque force testing without problem.
High hardness al alloy or cu teeth with tin plated.
Stable shear head force keep ±1Nm.
Same hardness of nut and bolt thread, prevent from thread broken.
UV protected plastic.
Hot dip, dacromet or chroming galvanization, prevent from oxidation and corrosion.
Some type can be used for underwater of 6kv withstand voltage, and compact structure of PVC or rubber lining with
teeth and body to prevent from leakage

RE756 RE101 REEP RE102 RE2-95

JBC-2 RE2-150 RE2-150T RE3-95 RE4-150

RE4-150A RE4-150B RE6 RE7

Equivalent Main Line Section Branch Line Section Nominal Current
Type 2 2 Torque(Nm)
Type (mm ) (mm ) (A)
RE756 JJC888 0.75-6 0.75-6 41 /
RE101 JJC-1 1.5-25 1.5-16 55 10
REEP JJC-2 16-95 1.5-16 55 10
RE102 JJC-3(B) 6-70 4-25 157 15
RE2-95 JJC-3 16-95 4-35(50) 157 20
JBC-2 / 35-70 6-35 120 23-25
RE2-150 JJC-4 50-150 6-50 157 20
RE2-150T / 16-150 4-50 / 15
RE3-95 JJC-5 25-95 25-95 214 20
RE4-150 JJC-6 35-150 35-150 316 26
RE4-150A / 35-150 35-150 316 26
RE4-150B / 16-150 16-150 316 26
RE6 / 120-240 25-120 276 35
RE7 / 150-240 10-25 102 35
