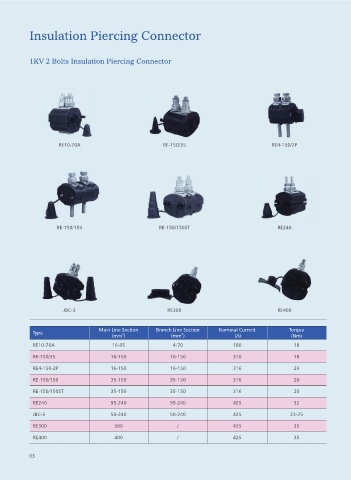

Insulation Piercing Connector

1KV 2 Bolts Insulation Piercing Connector

RE10-70A RE-150/35 RE4-150/2P

RE-150/150 RE-150/150ST RE240

JBC-3 RE300 RE400

Main Line Section Branch Line Section Nominal Current Torque
Type 2 2
(mm ) (mm ) (A) (Nm)
RE10-70A 16-95 4-70 180 18
RE-150/35 16-150 16-150 316 18
RE4-150-2P 16-150 16-150 316 26

RE-150/150 35-150 35-150 316 20
RE-150/150ST 35-150 35-150 316 20

RE240 95-240 95-240 425 32
JBC-3 50-240 50-240 425 23-25

RE300 300 / 425 35
RE400 400 / 425 35

03
