槽式桥架 槽式桥架

Channel Type Channel Type

槽 式 电 缆 桥 架 槽式扁形直通桥架 XQJ-C-01A
Channel Type flat Straight Cable Tray Model XQJ-C-01A
Channel-Tray Cable

XQJ-C 型 号 Specification Remark
规格A×B
备 注
Model
C-1A-1 50×25
C-1A-2 100×50 当H>125
C-1A-3 150×75 时，每端各
XQJ-C型槽式电缆桥架是一种全封闭型电缆桥架，它适用于敷设计算机电缆、通讯电 12只连接孔
C-1A-4 200×100
缆、热电偶电缆及其它高灵敏系统的控制电缆等。它对控制电缆的屏蔽干扰和重腐蚀环境中 C-1A-5 250×125 when H>125,
电缆的防护都有较好的效果。 C-1A-6 300×150 there will
be 12
XQJ-C type of channel-tray cable is fully sealed. It is suitable for Laying computer cable, C-1A-7 400×200 connection
C-1A-8 500×200 holes at
Communication cable, thermo-couple cable and control cable with other sensitive system. It has a C-1A-9 600×200 each side
good effect on the screen interference of control cable and the protection of cable in heavy corrosion C-1A-10 800×200
environment.

槽 式 注：订货时，请注明是否带盖。 槽 式

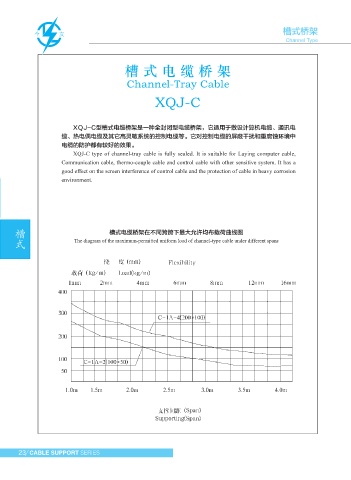

槽式电缆桥架在不同跨跨下最大允许均布载荷曲线图 Note:with cover or not shall be identified when ordering.
The diagram of the maximum-permitted uniform load of channel-type cable under different spans

扁形水平等径弯通 XQJ-C-2A(R)
Flat Horizontal Equant Elbow Cable Tray Model XQJ-C-2A(R)

型 号 规格A×B L 备 注
Model Specification Remark
C-2A(R)-1 50×25 350
C-2A(R)-2 100×50 400 当H>125
C-2A(R)-3 150×75 450 时，每端各
C-2A(R)-4 200×100 500 12只连接孔
when H>125,
C-2A(R)-5 250×125 550 there will
H
C-2A(R)-6 300×150 600
C-2A(R)-7 400×200 800
B be 12
L connection
C-2A(R)-8 500×200 900 holes at
C-2A(R)-9 600×200 1000 each side
C-2A(R)-10 800×200 1200

注：订货时，请注明是否带盖。
Note:with cover or not shall be identified when ordering.

23 CABLE SUPPORT SERIES CABLE SUPPORT SERIES 24
