托盘式桥架 托盘式桥架
Tray Type Tray Type

托盘式直通桥架 XQJ-P1-01

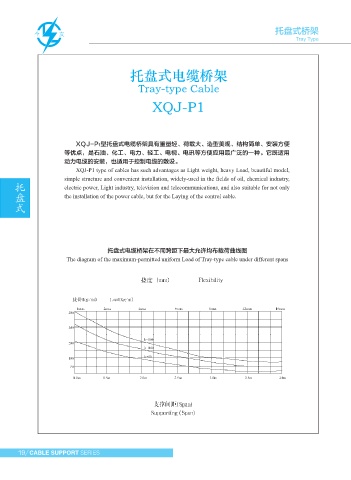

托盘式电缆桥架 Tray Type Straight Cable Tray Model XQJ-P1-01

Tray-type Cable

XQJ-P1 型 号 宽 度 高 度 备 注

Model width width Remark
P1-01-6-2 60 当H=60
P1-01-10-2 200 100 H=100时，
P1-01-15-2 150 每端各6只
P1-01-6-3 60 连接孔
XQJ-P1型托盘式电缆桥架具有重量轻、荷载大、造型美观、结构简单、安装方便
P1-01-10-3 300 100 when
等优点，是石油、化工、电力、轻工、电视、电讯等方便应用最广泛的一种。它既适用 P1-01-15-3 150 H=60,H=100,
动力电缆的安装，也适用于控制电缆的敷设。 P1-01-6-4 60 there will be
6 connection
XQJ-P1 type of cables has such advantages as Light weight, heavy Load, beautiful model, P1-01-10-4 400 100 holes at
盘 托 式 simple structure and convenient installation, widely-used in the fields of oil, chemical industry, P1-01-15-4 150 each side. 式 托 盘
P1-01-6-5
60
electric power, Light industry, television and telecommunications, and also suitable for not only P1-01-10-5 500 100 当H=150
时，每端各
the installation of the power cable, but for the Laying of the control cable. P1-01-15-5 150 12只连接孔
P1-01-6-6 60 when H=150,
P1-01-10-6 600 100 there will
P1-01-15-6 150 be 12
P1-01-6-8 60 connection
P1-01-10-8 800 100 holes at
P1-01-15-8 150 each side
注：订货时，请注明是否带盖。
Note:with cover or not shall be identified when ordering.
托盘式电缆桥架在不同跨距下最大允许均布载荷曲线图
The diagram of the maximum-permitted uniform Load of Tray-type cable under different spans 托盘式水平弯通 XQJ-P1-02
Tray Type Horizontal Elbow Cable Tray Model XQJ-P1-02

型 号 宽 度 高 度 L 备 注
Model width width Remark
P1-02-6-2 60 500 当H=60
P1-02-10-2 200 100 H=100时，
P1-02-15-2 150 每端各6只
P1-02-6-3 60 600 连接孔
P1-02-10-3 300 100 when
P1-02-15-3 150 H=60,H=100,
P1-02-6-4 60 700 there will be
P1-02-10-4 400 100 6 connection
P1-02-15-4 150 holes at
P1-02-6-5 60 800 each side.
P1-02-10-5 500 100 当H=150
时，每端各
P1-02-15-5 150 12只连接孔
P1-02-6-6 60 900 when H=150,
P1-02-10-6 600 100 there will
P1-02-15-6 150 1000 be 12
P1-02-6-8 60 1100 connection
P1-02-10-8 800 100 holes at
P1-02-15-8 150 1200 each side
注：订货时，请注明是否带盖。
Note:with cover or not shall be identified when ordering.

19 CABLE SUPPORT SERIES CABLE SUPPORT SERIES 20
