梯级式桥架 梯级式桥架
Ladder Tray Ladder Tray

梯级式电缆桥架 梯级式直通桥架 XQJ-T1-01
Ladder Type Straight Cable Tray Model XQJ-T1-01

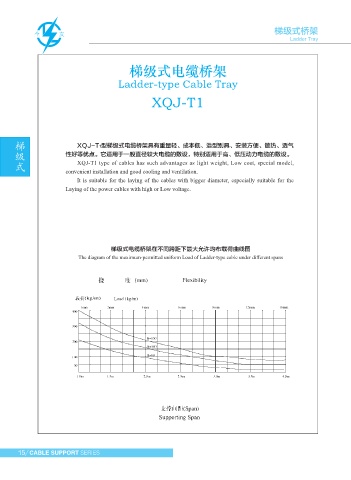

Ladder-type Cable Tray

XQJ-T1
备 注
型 号
高 度
width
Model 宽 度 Height Remark
T1-01-6-2 60
T1-01-10-2 200 100 当H=60
T1-01-15-2 150 H=100时，
梯级 式 T1-01-6-3 60 每端各6只 梯级 式
XQJ-T1型梯级式电缆桥架具有重量轻、成本低、造型别具、安装方便、散热、透气 T1-01-10-3 300 100 连接孔
when
性好等优点。它适用于一般直径较大电缆的敷设，特别适用于高、低压动力电缆的敷设。 T1-01-15-3 150 H=60,H=100,
T1-01-6-4 60
XQJ-T1 type of cables has such advantages as light weight, Low cost, special model, T1-01-10-4 400 100 there will be 6
connection
convenient installation and good cooling and ventilation. T1-01-15-4 150 holes at each
It is suitable for the laying of the cables with bigger diameter, especially suitable for the T1-01-6-5 60 side.
T1-01-10-5 500 100 当H=150
Laying of the power cables with high or Low voltage. T1-01-15-5 150 时，每端各
T1-01-6-6 60 12只连接孔
T1-01-10-6 600 100 when H=150,
T1-01-15-6 150 there will be 12
connection
T1-01-6-8 60
T1-01-10-8 800 100 holes at
each side
T1-01-15-8 150
注：订货时，请注明是否带盖。
Note:with cover or not shall be identified when ordering.
梯级式电缆桥架在不同跨距下最大允许均布载荷曲线图
The diagram of the maximum-permitted uniform Load of Ladder-type cable under different spans 梯级式水平弯通 XQJ-T1-02
Ladder Type Horizontal Elbow Cable Tray Model XQJ-T1-02

型 号 宽 度 高 度 L 备 注
Model width Height Remark
T1-02-6-2 60 500 当H=60
T1-02-10-2 200 100 H=100时，
T1-02-15-2 150 每端各6只
T1-02-6-3 60 600 连接孔
T1-02-10-3 300 100 when
T1-02-15-3 150 H=60,H=100,
there will be
T1-02-6-4 60 700 6 connection
T1-02-10-4 400 100 holes at
H
T1-02-15-4 150 each side.
T1-02-6-5 60 800 当H=150
T1-02-10-5 500 100 时，每端各
B
L T1-02-15-5 150 12只连接孔
T1-02-6-6 60 900 when H=150,
T1-02-10-6 600 100 there will
T1-02-15-6 150 1000 be 12
connection
T1-02-6-8 60 1100
T1-02-10-8 800 100 holes at
T1-02-15-8 150 1200 each side
注：订货时，请注明是否带盖。
Note:with cover or not shall be identified when ordering.

15 CABLE SUPPORT SERIES CABLE SUPPORT SERIES 16
