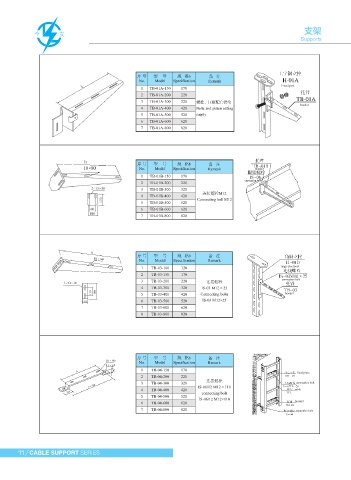

支架 大跨距桥架
Supports Longspan Cable Tray

序 号 型 号 规 格b 备 注 大 跨 距 电 缆 汇 线 桥 架
No. Model Specification Remark
I-steel post
1 TB-01A-150 170 Cable for combination with large spans
2 TB-01A-200 220 大 跨距
3 TB-01A-300 320 螺栓、压板配套供给 bracket
4 TB-01A-400 420 Bolts and platen setting XQJ-DJ
5 TB-01A-500 520 supply
6 TB-01A-600 620
7 TB-01A-800 820

槽式、托盘式、梯级式载荷曲线
（A型）
Load diagram of Channel-type, tray-type and ladder -type
序 号 型 号 规 格b 备 注
No. Model Specification Remark bracket (type A)
1 TB-01B-150 170 DJ大跨距电缆汇线桥架可分为梯
2 TB-01B-200 220 expansion bolt
3 TB-01B-300 320 级式、托盘式、槽式，分别用T、P、
4 TB-01B-400 420 连接螺栓M12 C表示。支撑间距<6m，当跨距>6m
5 TB-01B-500 520 Connecting bolt M12 ladder
6 TB-01B-600 620 时可接受特殊定货。
7 TB-01B-800 820 DJ Cables for combination with
channel
large spans can be divided into ladder-

type, tray-type and channel type,
which can be represented by T、P、C
序 号 型 号 规 格b 备 注
No. Model Specification Remark separately. When the supporting distance
1 TB-03-100 120 angle steel post is <6m and stance>6m, you can receive
2 TB-03-150 170
3 TB-03-200 220 连接螺栓 connection bolt special order.
4 TB-03-300 320 IS-03 M12×25
5 TB-03-400 420 Connecting bolts bracket 槽式、托盘式、梯级式载荷曲线
6 TB-03-500 520 IS-03 M12×25 （B型）
7 TB-03-600 620 Load diagram of Channel-type, tray-type and ladder -type
8 TB-03-800 820
(type B)

序 号 型 号 规 格b 备 注 ladder
No. Model Specification Remark
1 TB-04-150 170 channel tray-type
fixed plare
2 TB-04-200 220
3 TB-04-300 320 连接螺栓 connection bolt
4 TB-04-400 420 IS-06/12 M12×110 cable ladder
connecting bolt
5 TB-04-500 520 IS-06/12 M12×110
6 TB-04-600 620 bracket channel tray-type
7 TB-04-800 820 expansion bolt

11 CABLE SUPPORT SERIES CABLE SUPPORT SERIES 12
