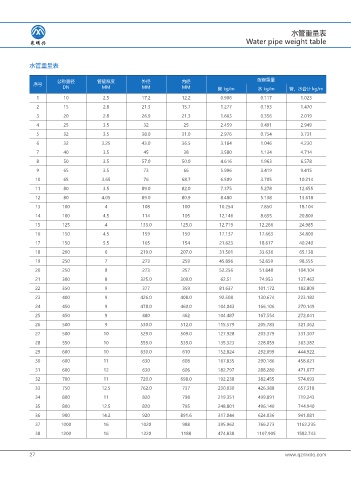

水管重量表
Water pipe weight table
水管重量表
公称直径 管壁厚度 外径 内径 配管重量
序号
DN MM MM MM 管 kg/m 水 kg/m 管、水合计 kg/m
1 10 2.5 17.2 12.2 0.906 0.117 1.023
2 15 2.8 21.3 15.7 1.277 0.193 1.470
3 20 2.8 26.9 21.3 1.663 0.356 2.019
4 25 3.5 32 25 2.459 0.491 2.949
5 32 3.5 38.0 31.0 2.976 0.754 3.731
6 32 3.25 43.0 36.5 3.184 1.046 4.230
7 40 3.5 45 38 3.580 1.134 4.714
8 50 3.5 57.0 50.0 4.616 1.963 6.578
9 65 3.5 73 66 5.996 3.419 9.415
10 65 3.65 76 68.7 6.509 3.705 10.214
11 80 3.5 89.0 82.0 7.375 5.278 12.655
12 80 4.05 89.0 80.9 8.480 5.138 13.618
13 100 4 108 100 10.254 7.850 18.104
14 100 4.5 114 105 12.146 8.655 20.800
15 125 4 133.0 125.0 12.719 12.266 24.985
16 150 4.5 159 150 17.137 17.663 34.800
17 150 5.5 165 154 21.623 18.617 40.240
18 200 6 219.0 207.0 31.501 33.636 65.138
19 250 7 273 259 45.896 52.659 98.555
20 250 8 273 257 52.256 51.848 104.104
21 300 8 325.0 309.0 62.51 74.953 137.462
22 350 9 377 359 81.637 101.172 182.809
23 400 9 426.0 408.0 92.508 130.674 223.182
24 450 9 478.0 460.0 104.043 166.106 270.149
25 450 9 480 462 104.487 167.554 272.041
26 500 9 530.0 512.0 115.579 205.783 321.362
27 500 10 529.0 509.0 127.928 203.379 331.307
28 550 10 559.0 539.0 135.323 228.059 363.382
29 600 10 630.0 610 152.824 292.099 444.922
30 600 11 630 608 167.835 290.186 458.021
31 600 12 630 606 182.797 288.280 471.077
32 700 11 720.0 698.0 192.238 382.455 574.693
33 750 12.5 762.0 737 230.930 426.388 657.318
34 800 11 820 798 219.351 499.891 719.243
35 800 12.5 820 795 248.801 496.140 744.940
36 900 14.2 920 891.6 317.044 624.036 941.081
37 1000 16 1020 988 395.962 766.273 1162.235
38 1200 16 1220 1188 474.838 1107.905 1582.743
