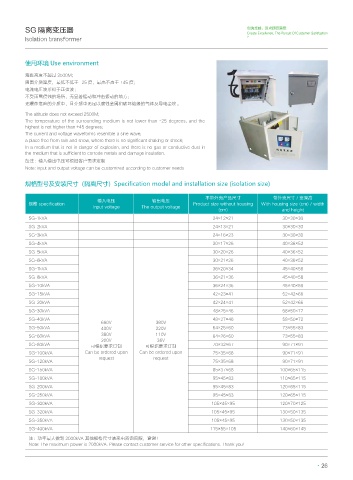

SG 隔离变压器 创造卓越，追求顾客满意
Create Excellence, The Pursuit Of Customer Satisfaction
Isolation transformer

使用环境 Use environment

海拔高度不超过 2500M；
周围介质温度，最低不低于 -25 度，最高不高于 +45 度；
电流电压波形似于正弦波；
不受雨雪侵蚀的场所，无显著摇动和冲击振动的地方；
无爆炸危险的介质中，且介质中无足以腐蚀金属和破坏绝缘的气体及导电尘埃。
The altitude does not exceed 2500M;
The temperature of the surrounding medium is not lower than -25 degrees, and the
highest is not higher than +45 degrees;
The current and voltage waveforms resemble a sine wave;
a place free from rain and snow, where there is no significant shaking or shock;
In a medium that is not in danger of explosion, and there is no gas or conductive dust in
the medium that is sufficient to corrode metals and damage insulation.
备注：输入输出电压可根据客户需求定制
Note: input and output voltage can be customized according to customer needs

规格型号及安装尺寸（隔离尺寸）Specification model and installation size (isolation size)

不带外壳产品尺寸 带外壳尺寸 / 宽深高
输入电压 输出电压
规格 specification Product size without housing With housing size (cm) / width
Input voltage The output voltage
(cm) and height
SG-1kVA 24×12×21 30×30×30
SG-2kVA 24×13×21 30×30×30
SG-3kVA 24×16×23 30×30×30
SG-4kVA 30×17×26 40×36×52
SG-5kVA 30×20×26 40×36×52
SG-6kVA 30×21×26 40×36×52
SG-7kVA 36×20×34 45×40×58
SG-8kVA 36×21×36 45×40×58
SG-10kVA 36×24×36 45×40×58
SG-15kVA 42×23×41 52×42×66
SG-20kVA 42×24×41 52×42×66
SG-30kVA 48×25×46 58×50×72
SG-40kVA 48×27×46 58×50×72
660V 380V
SG-50kVA 400V 220V 64×25×60 73×55×83
SG-60kVA 380V 110V 64×26×60 73×55×83
200V 36V
SG-80kVA 可根据要求订制 可根据要求订制 70×32×67 90×71×91
SG-100kVA Can be ordered upon Can be ordered upon 75×35×68 90×71×91
request request
SG-120kVA 75×35×68 90×71×91
SG-150kVA 85×37×68 100×65×115
SG-180kVA 95×45×83 110×65×115
SG-200kVA 95×45×83 120×65×115
SG-250kVA 95×45×83 120×65×115
SG-300kVA 105×45×95 120×70×125
SG-320kVA 105×45×95 130×50×135
SG-350kVA 105×45×95 130×50×135
SG-400kVA 115×55×105 140×60×145
注：功率最大做到 2000kVA 其他规格尺寸请来电咨询客服，谢谢！
Note: The maximum power is 2000kVA. Please contact customer service for other specifications. Thank you!
