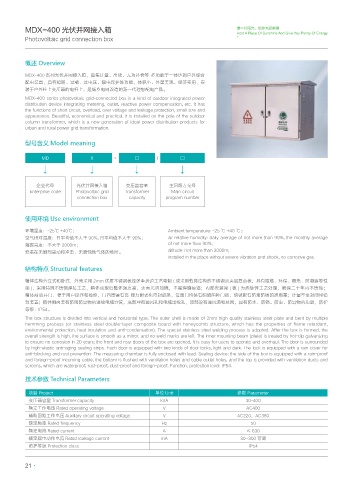

MDX-400 光伏并网接入箱 撑一片阳光，给你充足能量
Hold A Piece Of Sunshine And Give You Plenty Of Energy
Photovoltaic grid connection box

概述 Overview

MDX-400 系列光伏并网接入箱，是集计量、出线、无功补偿等 多功能于一体达到户外综合
配电装置，具有短路、过载、过电压、漏电保护等功能，体积小、外型美观、经济实用，安
装于户外柱上变压器的电杆上，是城乡电网改造的新一代理想配电产品。
MDX-400 series photovoltaic grid-connected box is a kind of outdoor integrated power
distribution device integrating metering, outlet, reactive power compensation, etc. It has
the functions of short circuit, overload, over voltage and leakage protection, small size and
appearance. Beautiful, economical and practical, it is installed on the pole of the outdoor
column transformer, which is a new generation of ideal power distribution products for
urban and rural power grid transformation.

型号含义 Model meaning

MD X - □ / □
↓ ↓ ↓ ↓

企业代号 光伏并网接入箱 变压器容量 主回路方案号
Enterprise code Photovoltaic grid Transformer Main circuit
connection box capacity program number

使用环境 Use environment

环境温度：-25℃ +40℃； Ambient temperature: -25 ℃ +40 ℃ ;
空气相对湿度：日平均值不大于 90%, 月平均值不大于 90%； air relative humidity: daily average of not more than 90%, the monthly average
海拔高度：不大于 2000m； of not more than 90%;
安装在无剧烈震动和冲击、无腐蚀性气体的场所。 altitude: not more than 2000m;
installed in the place without severe vibration and shock, no corrosive gas.
结构特点 Structural features
箱体结构分立式和卧式，外壳采用 2mm 优质不锈钢板经多重折边工艺弯制 ( 或采用蜂窝结构的不锈钢双夹层复合板，具有阻燃、环保、隔热、防凝露等性
能 )，采用特殊不锈钢焊接工艺，箱体成型后整体强度高，表面光洁如镜，不留焊缝痕迹；内部安装梁 ( 板 ) 为热镀锌工艺处理，确保二十年内不锈蚀；
箱体前后开门，便于用户操作和检修，门四周镶有高 弹力耐老化密封胶条，每扇门均装有明暗两种门锁，明锁配有防堵防锈的遮雨罩；计量室全封闭带铅
封装置；箱体侧面装有防雨防异物的进线电缆穿管，底部冲有通风孔和电缆出线孔，顶部设有通风道和丝网，具有防水、防锈、防尘、防异物的功能，防护
等级：IP54。
The box structure is divided into vertical and horizontal type. The outer shell is made of 2mm high-quality stainless steel plate and bent by multiple
hemming process (or stainless steel double-layer composite board with honeycomb structure, which has the properties of flame retardant,
environmental protection, heat insulation and anti-condensation). The special stainless steel welding process is adopted. After the box is formed, the
overall strength is high, the surface is smooth as a mirror, and no weld marks are left. The inner mounting beam (plate) is treated by hot-dip galvanizing
to ensure no corrosion in 20 years; the front and rear doors of the box are opened. It is easy for users to operate and overhaul. The door is surrounded
by high-elastic anti-aging sealing strips. Each door is equipped with two kinds of door locks, light and dark. The lock is equipped with a rain cover for
anti-blocking and rust prevention. The measuring chamber is fully enclosed with lead. Sealing device; the side of the box is equipped with a rain-proof
and foreign-proof incoming cable, the bottom is flushed with ventilation holes and cable outlet holes, and the top is provided with ventilation ducts and
screens, which are waterproof, rust-proof, dust-proof and foreign-proof. Function, protection level: IP54.

技术参数 Technical Parameters

项目 Project 单位 Unit 参数 Parameter
变压器容量 Transformer capacity kVA 30-400
额定工作电压 Rated operating voltage V AC400
辅助回路工作电压 Auxiliary circuit operating voltage V AC220，AC380
额定频率 Rated frequency Hz 50
额定电流 Rated current A ≤ 630
额定漏电动作电流 Rated leakage current mA 30~300 可调
防护等级 Protection class IP54
