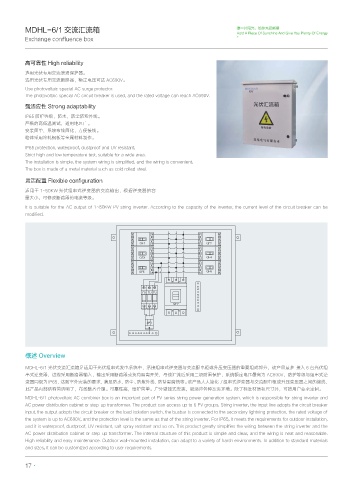

MDHL-6/1 交流汇流箱 撑一片阳光，给你充足能量
Hold A Piece Of Sunshine And Give You Plenty Of Energy
Exchange confluence box

高可靠性 High reliability
选用光伏专用交流浪涌保护器。
选用光伏专用交流断路器，额定电压可达 AC690V。
Use photovoltaic special AC surge protector.
The photovoltaic special AC circuit breaker is used, and the rated voltage can reach AC690V.
强适应性 Strong adaptability
IP65 防护等级，防水，防尘防紫外线。
严格的高低温测试，适用地区广。
安装简单，系统布线简化，方便接线。
箱体采用冷轧钢板等金属材料制作。
IP65 protection, waterproof, dustproof and UV resistant.
Strict high and low temperature test, suitable for a wide area.
The installation is simple, the system wiring is simplified, and the wiring is convenient.
The box is made of a metal material such as cold rolled steel.
灵活配置 Flexible configuration

适用于 1~50KW 光伏组串式逆变器的交流输出，根据逆变器的容
量大小，可修改断路器的电流等级。
It is suitable for the AC output of 1~50KW PV string inverter. According to the capacity of the inverter, the current level of the circuit breaker can be
modified.

2' 2'

2' 2'

2' 2'

'6 '6 '6

2'

41%

概述 Overview

MDHL-6/1 光伏交流汇流箱是适用于光伏组串式发电系统中，承接组串式逆变器与交流配电柜或升压变压器的重要组成部分，该产品最多 接入 6 台光伏组
串式逆变器，进线采用断路器输入，输出采用断路器或负荷隔离开关，母线汇流后采用二级防雷保护，系统额定电压最高为 AC690V，防护等级与组串式逆
变器同级为 IP65，达到室外安装的要求，满足防水，防尘、防紫外线，防盐雾腐蚀等。该产品大大简化了组串式逆变器与交流配电柜或升压变压器之间的接线，
此产品内部结构简洁明了，布线整齐合理。可靠性高，维护简单。户外壁挂式安装，能适应各种恶劣环境。除了标准材质和尺寸外，可按用户要求定制。
MDHL-6/1 photovoltaic AC combiner box is an important part of PV series string power generation system, which is responsible for string inverter and
AC power distribution cabinet or step-up transformer. The product can access up to 6 PV groups. String inverter, the input line adopts the circuit breaker
input, the output adopts the circuit breaker or the load isolation switch, the busbar is connected to the secondary lightning protection, the rated voltage of
the system is up to AC690V, and the protection level is the same as that of the string inverter. For IP65, it meets the requirements for outdoor installation,
and it is waterproof, dustproof, UV resistant, salt spray resistant and so on. This product greatly simplifies the wiring between the string inverter and the
AC power distribution cabinet or step-up transformer. The internal structure of this product is simple and clear, and the wiring is neat and reasonable.
High reliability and easy maintenance. Outdoor wall-mounted installation, can adapt to a variety of harsh environments. In addition to standard materials
and sizes, it can be customized according to user requirements.
