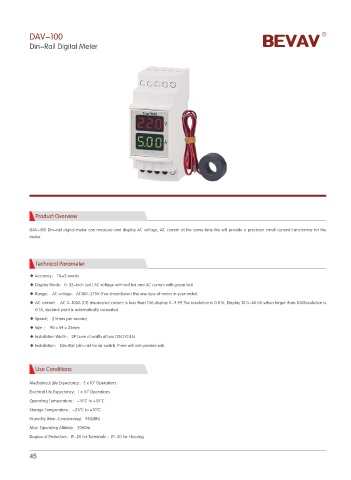

DAV-100
           Din-Rail Digital Meter



































             Product Overview

           DAV-100 Din-rail digital meter can measure and display AC voltage, AC current at the same time.We will provide a precision small current transformer for the
           meter.




             Technical Parameter

           ◆ Accuracy: 1%+2 words
           ◆ Display Mode:0. 32-inch Led ( AC voltage with red led and AC current with green led)
           ◆ Range: AC voltage:AC160-275V (You shouldselect the one type of meter in your order).
           ◆ AC current: AC 0-100A (CT) (measured current is less than 10A,display 0-9.99,The resolution is 0.01A. Display 10.0-60.0A when larger than 10AResolution is
             0.1A, decimal point is automatically converted
           ◆ Speed: 2 times per second;
           ◆ Size :  90×59×35mm
           ◆ Installation Width: 2P (sum of width of two D247/C45)
           ◆ Installation: Din-Rail (din-rail for air switch, there will not-provide rail)



             Use Conditions

                                 6
           Mechanical Life Expectancy:3 x 10  Operations
                               5
           Electrical Life Expectancy:1 x 10  Operations
           Operating Temperature:-15℃ to +55℃
           Storage Temperature:-25℃ to +70℃
           Humidity (Non-Condensing):95%(Rh)
           Max. Operating Altitude:2000m
           Degree of Protection:IP-20 for Terminals ;IP-30 for Housing
