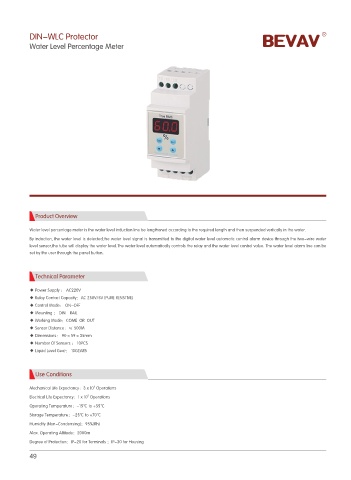

DIN-WLC Protector
Water Level Percentage Meter
Product Overview
Water level percentage meter is the water level induction line be lengthened according to the required length and then suspended vertically in the water.
By induction, the water level is detected,the water level signal is transmitted to the digital water level automatic control alarm device through the two-wire water
level sensor,the tube will display the water level.The water level automatically controls the relay and the water level control value. The water level alarm line can be
set by the user through the panel button.
Technical Parameter
◆ Power Supply ： AC220V
◆ Relay Contact Capacity：AC 250V/5V (PURE RESISTIVE)
◆ Control Mode： ON-OFF
◆ Mounting ： DIN RAIL
◆ Working Mode：COME OR OUT
◆ Sensor Distance：≤ 500M
◆ Dimensions： 90×59×35mm
◆ Number Of Sensors ： 10PCS
◆ Liquid Level Gear： 10GEARS
Use Conditions
6
Mechanical Life Expectancy：3 x 10 Operations
5
Electrical Life Expectancy：1 x 10 Operations
Operating Temperature：-15℃ to +55℃
Storage Temperature：-25℃ to +70℃
Humidity (Non-Condensing)：95%(Rh)
Max. Operating Altitude：2000m
Degree of Protection：IP-20 for Terminals ；IP-30 for Housing
