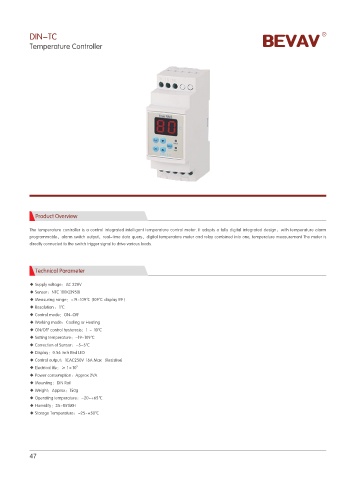

DIN-TC
Temperature Controller
Product Overview
The temperature controller is a control integrated intelligent temperature control meter. It adopts a fully digital integrated design、with temperature alarm
programmable、alarm switch output、real-time data query、digital temperature meter and relay combined into one, temperature measurement The meter is
directly connected to the switch trigger signal to drive various loads.
Technical Parameter
◆ Supply voltage：AC 220V
◆ Sensor：NTC 100K(3950)
◆ Measuring range：-19~109℃ (109℃ display R9 )
◆ Resolution ：1℃
◆ Control mode：ON-OFF
◆ Working mode：Cooling or Heating
◆ ON/OFF control hysteresis：1 ～ 10℃
◆ Setting temperature：-19~109℃
◆ Correction of Sensor：-5~5℃
◆ Display：0.56 inch Red LED
◆ Control output：1CAC250V 16A Max (Resistive)
◆ Electrical life：≥ 1×10 5
◆ Power consumption：Approx 2VA
◆ Mounting：DIN Rail
◆ Weight：Approx：150g
◆ Operating temperature：-20~+65℃
◆ Humidity：35~85%RH
◆ Storage Temperature：-25~+50℃
