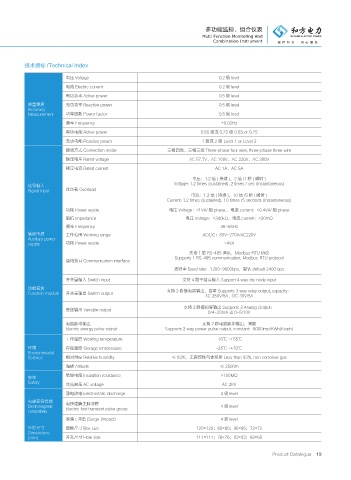

P. 23

多功能监控、组合仪表
                                                                       Multi Function Monitoring And
                                                                          Combination Instrument



          技术指标 /Technical Index

                        电压 Voltage                                          0.2 级 level
                        电流 Electric current                                 0.2 级 level
                        有功功率 Active power                                   0.5 级 level
           测量精度         无功功率 Reactive power                                 0.5 级 level
           Accuracy
           Measurement  功率因数 Power factor                                   0.5 级 level
                        频率 Frequency                                         ±0.02Hz
                        有功电能 Active power                             0.5S 级或 0.2S 级 0.5S or 0.2S
                        无功电能 Reactive power                           1 级或 2 级 Level 1 or Level 2
                        接线方式 Connection mode               三相四线、三相三线 Three-phase four wire, three-phase three wire
                        额定电压 Rated voltage                        AC 57.7V、AC 100V、AC 220V、AC 380V
                        额定电流 Rated current                                 AC 1A、AC 5A
                                                                   电压:1.2 倍 ( 持续 ),2 倍 /1 秒 ( 瞬时 )
           信号输入                                              Voltage: 1.2 times (sustained), 2 times / sec (instantaneous)
           Signal input  过负载 Overload
                                                                   电流:1.2 倍 ( 持续 ),10 倍 /5 秒 ( 瞬时 )
                                                          Current: 1.2 times (sustained), 10 times /5 seconds (instantaneous)
                        功耗 Power waste                     电压 Voltage:<1VA/ 相 phase,,电流 current:<0.4VA/ 相 phase
                        阻抗 Impedance                             电压 Voltage:>300kΩ,电流 current:<20mΩ
                        频率 Frequency                                         45~65Hz
           辅助电源         工作范围 Working range                             AC/DC:80V~270V/AC220V
           Auxiliary power
           supply       功耗 Power waste                                        <4VA
                                                                  支持 1 路 RS-485 通讯,Modbus-RTU 协议
                                                             Supports 1 RS-485 communication, Modbus-RTU protocol
                        通讯接口 Communication interface
                                                             波特率 Baud rate:1200~9600bps,默认 default 2400 bps

                        开关量输入 Switch input                      支持 4 路干结点输入 Support 4 way dry node input
           功能模块                                           支持 3 路继电器输出,容量 Supports 3 way relay output, capacity:
           Function module  开关量输出 Switch output
                                                                        AC 250V/5A,DC 30V/5A

                        变送输出 Variable output                    支持 3 路模拟量输出 Supports 3 Analog Output:
                                                                         0/4~20mA 或 0~5/10V
                        电能脉冲输出                                         支持 2 路电能脉冲输出,常数
                        Electric energy pulse output      Supports 2 way power pulse output, constant:8000imp/KWh(Kvarh)
                        工作温度 Working temperature                           -10℃ ~+55℃
           环境           存储温度 Storage temperature                           -25℃ ~+70℃
           Environmental
           Science      相对湿度 Relative humidity              ≤ 93%,无腐蚀性气体场所 Less than 93%, non corrosive gas
                        海拔 Altitude                                          ≤ 2500m
                        绝缘电阻 Insulation resistance                           >100MΩ
           安全
           Safety       交流耐压 AC voltage                                      AC 2KV
                        静电放电 Electrostatic discharge                         4 级 level
           电磁兼容性能       电快速瞬变脉冲群
           Electromagnetic                                                   4 级 level
           compatibility  Electric fast transient pulse group
                        浪涌 ( 冲击 )Surge (impact)                              4 级 level
           外形尺寸         面框尺寸 Box size                                120×120;80×80;96×96;72×72
           Dimensions
           (mm)         开孔尺寸 Hole size                               111×111;76×76;92×92;68×68
